Introduction
The YTO series mining vibrating screens include two major product lines: YK series circular vibrating screens and ZK series linear vibrating screens, specially designed for material classification, dewatering, desliming and demedium operations in mining, sand and aggregate, coal and other industries. Adopting advanced excitation technology and multiple anti-clogging designs, it completely solves the industry problems of low screening efficiency, easy blockage and short service life of traditional vibrating screens, and is the core classification equipment for crushing and screening production lines and mineral processing plants.
Core Advantages
✅Industry-Leading Screening Efficiency
- Adopts box-type exciter technology with excitation force up to 6G, increasing processing capacity by more than 30% compared with ordinary vibrating screens
- Screening efficiency reaches over 95%, with uniform finished material particle size and reasonable gradation
- Multi-layer screen surface design, capable of producing 2-5 different particle size products simultaneously
- Adjustable amplitude and frequency to adapt to different material characteristics and screening requirements
✅ Multiple Anti-Clogging Self-Cleaning Systems
- Bouncing ball cleaning device: High-elastic rubber balls are configured under the screen mesh to hit the screen at high frequency and effectively remove stuck particles
- Tapered hole screen plate design: Screen holes are larger at the top and smaller at the bottom, preventing material jamming and reducing blockage probability
- Self-cleaning polyurethane screen plate: Elastic screen holes automatically contract and rebound with vibration, completely solving the blockage problem of viscous materials
- Optional ultrasonic cleaning system for ultra-fine powder material screening
✅Exceptionally Long Wear-Resistant Service Life
- Screen mesh adopts high-chromium alloy woven mesh or wear-resistant polyurethane screen plate, with service life 5-8 times that of ordinary steel plate mesh
- Screen box is integrally riveted with high-strength steel plate, no welding stress, strong impact resistance
- Heavy-duty rubber spring shock absorption, stable operation, extending the overall service life of the equipment
- Imported SKF bearings with triple sealing structure prevent dust from entering, extending bearing life by 3 times
✅Intelligent & Eco-Friendly Operation
- Fully enclosed structure design with no dust overflow, meeting national environmental protection requirements
- Low noise operation (≤85dB), far below industry standards
- Optional PLC automatic control system for real-time monitoring of vibration parameters and equipment status
- Modular design, easy replacement of wearing parts, reducing maintenance time by 60%
✅Flexible Customized Configurations
- Available in 1-4 layer screen surface configurations to meet multi-stage screening needs
- Screen hole sizes can be customized according to customer requirements (0.15-100mm)
- Supports both seat type and hanging type installation methods
- High-temperature and corrosion-resistant vibrating screens can be customized for special working conditions
Product Types & Working Principles

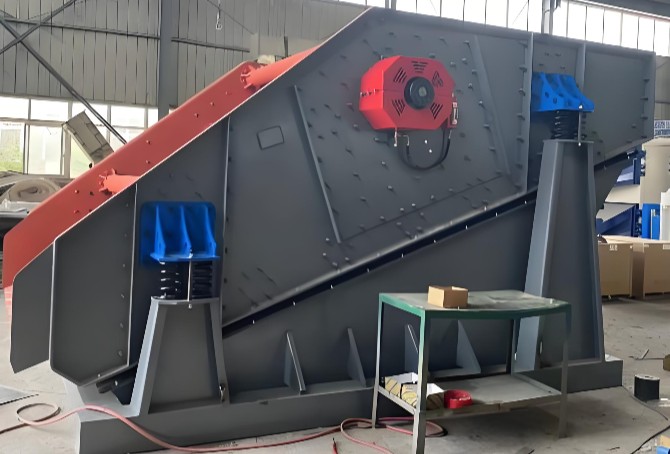

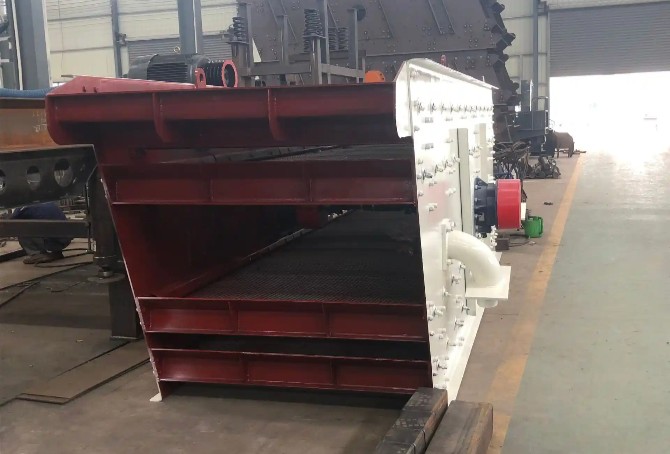

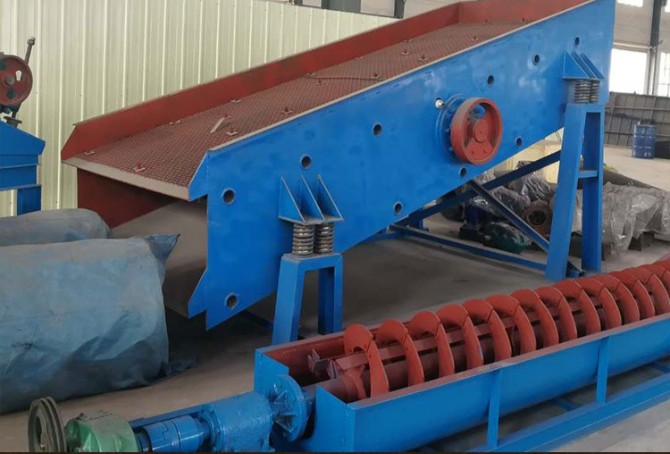

1. YTO-YK Series Circular Vibrating Screens (Coarse/Medium Particle Size Screening)
Working Principle: Driven by a single-axis eccentric exciter, the screen box moves in a circular trajectory. Materials move forward in a spiral jumping motion on the screen surface, with intense collision between particles, effectively breaking up agglomerated materials, suitable for efficient classification of loose and block materials.
Application Scenarios:
- Classification operations after coarse and medium crushing of ores
- Finished product classification in sand and aggregate production
- Screening and classification of coal and coke
- Impurity removal and pre-screening of bulk materials
2. YTO-ZK Series Linear Vibrating Screens (Fine Particle Size Screening/Dewatering)
Working Principle: Adopting dual-motor reverse self-synchronous vibration technology, two vibration motors rotate synchronously in opposite directions to generate directional linear excitation force. Materials move in a parabolic jumping motion on the screen surface, completing both screening and dewatering processes simultaneously.
Application Scenarios:
- Classification and dewatering of fine-grained ores
- Finished sand dewatering in sand washing production lines
- Dewatering and desliming of concentrates and tailings
- Screening of coal slime and fine powder materials
Technical Specifications
YTO-YK Series Circular Vibrating Screens
| Model | Screen Surface Size (mm) | Layers | Capacity (t/h) | Screen Hole Size (mm) | Motor Power (kW) | Weight (kg) |
| YTO-YK-1236 | 1200×3600 | 2 | 50-150 | 5-80 | 11 | 4200 |
| YTO-YK-1548 | 1500×4800 | 2 | 100-250 | 5-100 | 18.5 | 6800 |
| YTO-YK-1860 | 1800×6000 | 3 | 200-400 | 3-100 | 30 | 11500 |
| YTO-YK-2160 | 2100×6000 | 3 | 300-600 | 3-100 | 37 | 15800 |
YTO-ZK Series Linear Vibrating Screens
| Model | Screen Surface Size (mm) | Layers | Capacity (t/h) | Screen Hole Size (mm) | Motor Power (kW) | Weight (kg) |
| YTO-ZK-1030 | 1000×3000 | 2 | 30-80 | 0.15-20 | 2×3.0 | 2800 |
| YTO-ZK-1236 | 1200×3600 | 2 | 50-150 | 0.15-30 | 2×4.0 | 4200 |
| YTO-ZK-1542 | 1500×4200 | 3 | 100-250 | 0.15-40 | 2×5.5 | 6500 |
| YTO-ZK-1848 | 1800×4800 | 3 | 150-350 | 0.15-50 | 2×7.5 | 9800 |
Note: Vibrating screens with special specifications and functions can be customized according to customer requirements
Application Fields
Classification and dewatering of iron ore, gold ore, copper ore, tungsten ore, etc.
Finished product classification after crushing of granite, basalt, river pebbles, etc.
Raw coal classification, clean coal dewatering, coal slime recovery
Screening of cement clinker, limestone, gypsum
Classification and screening of fertilizers and chemical raw materials
Construction waste recycling, tailings dry discharge treatment
Typical Process Flows
Sand & Aggregate Crushing & Screening Production Line
Raw Material → Jaw Crusher → Cone Crusher → YTO-YK Circular Vibrating Screen (Pre-screening) → VSI Sand Maker → YTO-YK Circular Vibrating Screen (Finished Product Classification) → Spiral Sand Washer → Dewatering Screen → Finished Sand
Iron Ore Beneficiation Screening Process
Raw Ore → Jaw Crusher → YTO-YK Circular Vibrating Screen → Cone Crusher → YTO-YK Circular Vibrating Screen → Ball Mill → Spiral Classifier → Magnetic Separator → YTO-ZK Linear Vibrating Screen (Concentrate Dewatering) → Iron Concentrate
YTO Service Commitment
Pre-Sales Service
✅ Free material screening test and particle size analysis
✅ Professional screening system design and equipment configuration
✅ On-site investigation and civil engineering guidance
✅ Detailed investment budget and return on investment analysis
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Comprehensive performance testing and quality inspection before delivery
✅ Export-standard packaging to ensure transportation safety
✅ Complete technical documents and operation manuals provided
After-Sales Service
✅ Engineers dispatched to guide on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year full machine warranty, 6-month warranty for wearing parts
✅ Global original spare parts supply with 24-hour response
✅ Lifetime technical support and equipment upgrade services
Success Cases
300t/h Granite Crushing & Screening Project in Niger
- Adopted 2 sets of YTO-YK-1860 three-layer circular vibrating screens
- Produces four specifications of aggregates: 0-5mm, 5-10mm, 10-20mm, 20-40mm
- Screening efficiency reaches 96%, finished product particle shape is excellent, flake content is less than 5%
- Equipment has been operating continuously for 3 years without major failures
200t/h River Pebble Sand Making Project in Philippines
- Equipped with 1 set of YTO-YK-1548 circular vibrating screen and 1 set of YTO-ZK-1236 linear vibrating screen
- Finished sand gradation is reasonable, fineness modulus is 2.6-2.8
- Solved the previous serious fine sand loss problem, increased resource utilization rate by 15%
- Products supplied to local large concrete mixing plants
500t/d Iron Ore Pre-concentration Project in Tangshan, China
- Installed 1 set of YTO-YK-2160 circular vibrating screen
- Pre-classifies crushed iron ore and discards waste rock
- Improved the feed grade of the ball mill and reduced grinding cost by 30%
- Annual new economic benefit of 12 million RMB
