Introduction

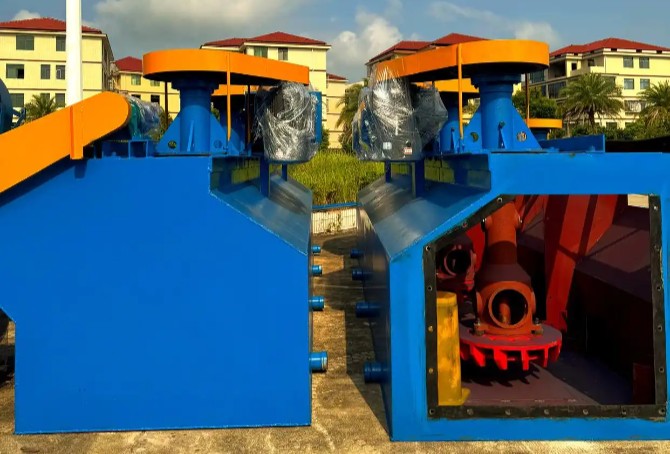

The YTO-XJK series flotation machine is an upgraded self-aspirated mechanical agitation flotation equipment independently developed by YTO, optimized for fine-grained mineral separation. It is widely used for the beneficiation of non-ferrous metals, ferrous metals and non-metallic minerals, featuring high separation efficiency, low energy consumption, stable operation and long service life. YTO flotation machines are the preferred choice for gold, copper, lead-zinc and fluorite processing plants worldwide.
Core Advantages
✅Industry-Leading Separation Efficiency
- Optimized impeller-stator structure creates strong mineralization effect, improving bubble-particle attachment rate by 15%
- Increases fine-grained (-0.074mm) mineral recovery rate by 10-18% compared to traditional flotation machines
- Uniform air distribution throughout the tank, eliminating dead zones and ensuring stable flotation indexes
- Adjustable aeration rate from 0.1 to 1.0 m³/m²·min to adapt to different ore properties
✅ Significant Energy Saving Design
- Adopts advanced hydrodynamic impeller design, reducing power consumption by 20-30%
- Self-aspirated air system eliminates the need for external air compressors, saving additional energy costs
- Low-speed operation reduces wear and tear, extending the service life of wearing parts
- Energy-saving motor configuration with high power factor and low operating noise (<85dB)
✅Ultra-Durable Construction
- Impeller and stator made of high-chromium wear-resistant alloy, service life up to 2-3 years
- Tank body adopts 6-12mm thick steel plate with anti-corrosion lining, suitable for acidic and alkaline ore pulp
- Heavy-duty bearing assembly with double sealing structure, preventing slurry leakage
- Reinforced frame design ensures stable operation even under long-term full-load conditions
✅Intelligent & Flexible Operation
- Optional PLC automatic control system for real-time adjustment of aeration rate, impeller speed and pulp level

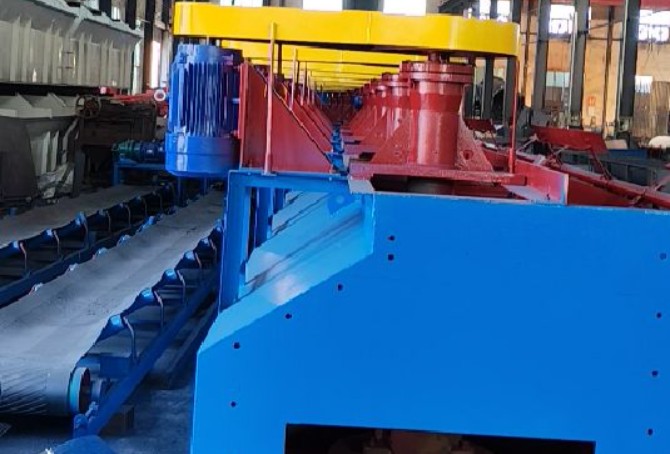

- Modular tank design allows flexible combination of different numbers of cells according to process requirements
- Quick-change wearing parts structure, reducing maintenance downtime by 50%
- Equipped with automatic foam scraping device with adjustable speed
✅ Wide Application Range
- Suitable for minerals with particle size ranging from 0.003mm to 0.3mm
- Can handle various ore types including sulfide ores, oxide ores and non-metallic minerals

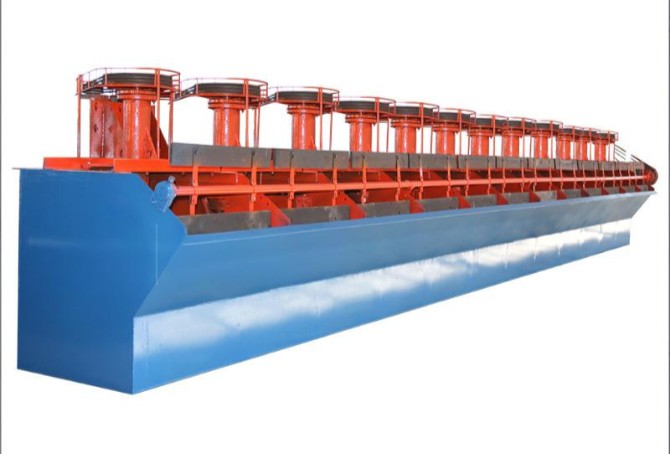

- Available in single cell, double cell and multiple cell configurations to meet different production scales
- Customized designs available for special ore properties and process requirements
Working Principles
The flotation machine separates minerals based on differences in their surface hydrophobicity. The impeller rotates to generate centrifugal force, which draws in air and forms fine bubbles. Hydrophobic mineral particles attach to the bubbles and rise to the pulp surface to form a froth layer, which is scraped off by the foam scraper to become concentrate. Hydrophilic gangue particles remain in the pulp and are discharged as tailings.
Technical Specifications
| Model | Tank Volume (m³) | Capacity (m³/min) | Impeller Diameter (mm) | Impeller Speed (r/min) | Motor Power (kW) | Weight (kg) |
| YTO-XJK-0.35 | 0.35 | 0.18-0.35 | 350 | 600 | 1.5 | 500 |
| YTO-XJK-0.62 | 0.62 | 0.3-0.6 | 420 | 520 | 3.0 | 850 |
| YTO-XJK-1.1 | 1.1 | 0.6-1.1 | 500 | 440 | 5.5 | 1200 |
| YTO-XJK-2.8 | 2.8 | 1.5-2.8 | 650 | 360 | 11 | 2100 |
| YTO-XJK-5.8 | 5.8 | 3.0-5.8 | 800 | 280 | 22 | 3800 |
| YTO-XJK-8.0 | 8.0 | 4.0-8.0 | 900 | 240 | 30 | 5200 |
Note: Customized flotation machines with larger capacities and special configurations are available upon request
Application Fields
YTO-XJK series flotation machines are widely used in the following mineral processing scenarios:
Gold, silver ore flotation, recovery rate up to 90%
Copper, lead, zinc, nickel, cobalt ore beneficiation
Hematite, limonite, siderite flotation
Fluorite, barite, graphite, talc, phosphate ore processing
Tantalum, niobium, rare earth ore separation
Recovery of valuable metals from electronic waste and tailings
Typical Process Flows
Gold Ore Flotation Process
Run-of-Mine Ore → Jaw Crusher → Cone Crusher → Ball Mill → Spiral Classifier → YTO-XJK Flotation Machine (Rougher-Scavenger-Cleaner) → Thickener → Filter Press → Gold Concentrate
Copper-Lead-Zinc Ore Flotation Process
Run-of-Mine Ore → Crushing → Grinding → Classification → Copper-Lead Bulk Flotation → Copper-Lead Separation Flotation → Zinc Flotation → Concentrate Dewatering → Final Products
YTO Service Commitment
Pre-Sales Service
✅ Free ore flotation tests with detailed separation effect reports
✅ Professional flotation process design and reagent system recommendations
✅ Plant layout design and equipment configuration optimization
✅ Detailed investment budget and return on investment analysis
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Factory inspection and acceptance before delivery
✅ Export-standard packaging for international shipping
✅ Complete set of technical documents and operation manuals
After-Sales Service
✅ Experienced engineers dispatched for on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Global spare parts supply with fast delivery
✅ 24/7 technical support via phone, email and video conference
Success Cases
50t/d Rock Gold Processing Plant in Egypt
- Adopted 12 sets of YTO-XJK-1.1 flotation machines
- Raw ore grade 3.2 g/t Au, final concentrate grade 65 g/t Au
- Overall gold recovery rate reached 88%
- Project completed and delivered in 4 months, now operating stably
2000t/d Gold Ore Processing Plant in South Africa
- Equipped with 24 sets of YTO-XJK-5.8 flotation machines
- Raw ore grade 2.1 g/t Au, final concentrate grade 58 g/t Au
- Gold recovery rate improved by 12% compared to old equipment
- Annual profit increased by 15 million USD
