Introduction

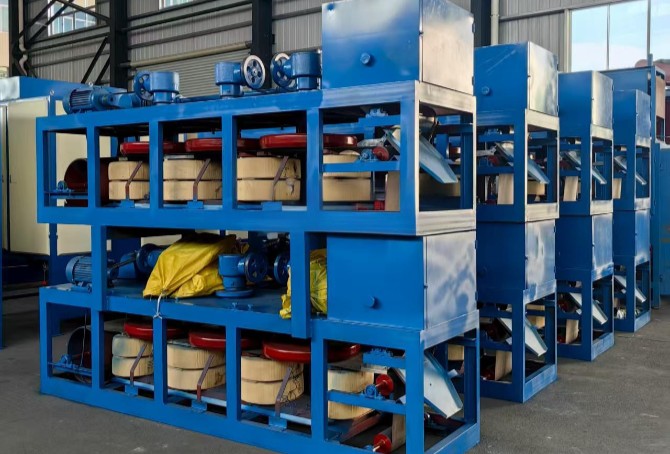

The YTO CTB series wet permanent magnetic drum separators are industry-leading magnetic separation equipment specifically engineered for efficient separation of ferromagnetic and paramagnetic minerals from slurry in mineral processing plants. Featuring advanced NdFeB rare earth magnetic systems and semi-countercurrent tank designs, these heavy-duty magnetic separators deliver exceptional mineral recovery rates (up to 99%) while maintaining extremely low operating costs. As the core equipment in iron ore beneficiation lines, YTO magnetic separators are also widely used for coal purification, non-metallic mineral de-ironing and tailings recovery applications worldwide.
Core Advantages
✅Premium Rare Earth Magnetic System
- Adopts high-performance NdFeB permanent magnets with high magnetic energy product and coercivity, providing magnetic field strength up to 18000 Gauss. 8-year demagnetization rate does not exceed 5%, ensuring long-term stable performance.
✅ High Recovery & Grade Optimization
- Large-envelope magnetic system with gradual field strength distribution and multiple magnetic flips effectively captures fine and ultra-fine magnetic particles, achieving both high concentrate grade and high recovery rate simultaneously.
✅Ultra-Low Energy Consumption
- Permanent magnet design requires no electrical excitation, consuming only 10-20% of the power of electromagnetic separators. No cooling system needed, truly energy-efficient and environmentally friendly.

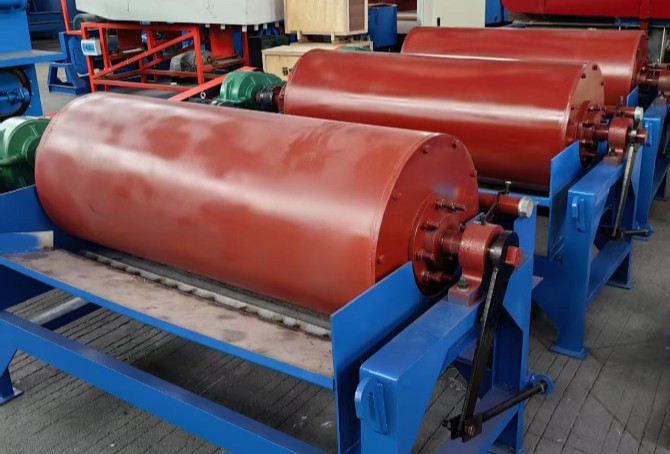

✅Durable Construction
- Drum shell made of 3-5mm thick non-magnetic stainless steel with wear-resistant rubber lining, service life up to 5-8 years. Magnetic system fully enclosed in stainless steel housing to prevent magnet detachment.
✅Flexible Process Adjustment
- Magnetic system deflection angle adjustable via threaded rod mechanism. Drum speed and slurry level can be easily adjusted to optimize separation performance for different ore characteristics.
✅Semi-Countercurrent Tank Design
- Optimized flow path ensures sufficient contact time between slurry and magnetic field, minimizing magnetic mineral loss in tailings. Suitable for roughing, cleaning and scavenging operations.
✅Simple Structure & Easy Maintenance
- Modular design with few moving parts. Daily maintenance only requires periodic inspection and lubrication, reducing downtime by up to 60% compared to complex separation equipment.
✅Multiple Configuration Options
- Available in downstream, countercurrent and semi-countercurrent tank types. Optional dry magnetic separators and high-gradient magnetic separators (HGMS) for special applications.
Working Principles
The YTO CTB magnetic separator operates based on the difference in magnetic susceptibility between minerals. Slurry enters the separation tank evenly from the feed box and flows through the semicircular separation chamber beneath the rotating drum. Under the powerful magnetic field generated by the internal permanent magnet system, magnetic particles are magnetized and firmly adsorbed onto the drum surface. As the drum rotates, these captured particles are transported to the concentrate discharge zone where the magnetic field strength decreases significantly, and are then washed into the concentrate launder by high-pressure water jets. Non-magnetic or weakly magnetic particles remain in the slurry and are discharged as tailings through the tailings outlet. This continuous process achieves efficient separation of magnetic and non-magnetic minerals.
Technical Specifications
| Model | Drum Diameter (mm) | Drum Length (mm) | Capacity (t/h) | Magnetic Field Intensity (Gauss) | Drum Speed (r/min) | Motor Power (kW) | Weight (kg) |
| YTO-CTB-4060 | 400 | 600 | 0.5-2 | 1000-6000 | 35-48 | 1.1 | 350 |
| YTO-CTB-6012 | 600 | 1200 | 10-25 | 1200-8000 | 25-35 | 1.5 | 850 |
| YTO-CTB-6018 | 600 | 1800 | 15-35 | 1200-8000 | 25-35 | 2.2 | 1200 |
| YTO-CTB-7518 | 750 | 1800 | 25-50 | 1500-10000 | 20-30 | 3.0 | 1800 |
| YTO-CTB-9024 | 900 | 2400 | 40-80 | 1500-12000 | 18-25 | 5.5 | 3200 |
| YTO-CTB-10524 | 1050 | 2400 | 60-120 | 1800-15000 | 15-22 | 7.5 | 4500 |
| YTO-CTB-12030 | 1200 | 3000 | 80-180 | 1800-18000 | 12-20 | 11 | 6800 |
Customization Options: Dry magnetic separators for coarse-grained ores, high-gradient magnetic separators (HGMS) for weakly magnetic minerals (hematite, ilmenite), stainless steel tanks for corrosive slurries, and PLC automatic control systems are available upon request.
Application Fields
Concentration of magnetite, hematite, limonite and siderite ores
Separation of ilmenite, monazite and other paramagnetic minerals
Recovery of manganese oxides from low-grade ores
Removal of pyrite and other magnetic impurities from coal
De-ironing of quartz sand, feldspar, kaolin and limestone
Reclaiming valuable magnetic minerals from processing tailings
Iron removal from cement raw materials and aggregates
Typical Process Flows
Magnetite Beneficiation Line
Run-of-Mine Ore → Jaw Crusher → Cone Crusher → Ball Mill → Spiral Classifier → YTO CTB Magnetic Separator → Concentrate Thickener → Filter Press → Iron Ore Concentrate
Hematite Beneficiation Line
Crushed Ore → Ball Mill → Hydrocyclone → YTO High-Gradient Magnetic Separator → Flotation Machine → Concentrate Thickener → Filter Press
Quartz Sand Purification Line
Raw Quartz Sand → Crushing → Grinding → Screening → YTO CTB Magnetic Separator (De-ironing) → Washing → Drying → Finished Quartz Sand
YTO Service Commitment
Pre-Sales Engineering Support
✅ Free ore sample testing and magnetic separation performance analysis
✅ Professional equipment selection and process flow design by experienced mineral processing engineers
✅ Detailed investment budget and return on investment (ROI) analysis
✅ Customized solutions for special ore types and processing requirements
Manufacturing & Quality Assurance
✅ Strict manufacturing processes in accordance with ISO9001:2015 quality management system
✅ Comprehensive magnetic field testing and performance verification before delivery
✅ Export-standard packaging for safe international sea and air transportation
✅ Complete set of technical documents, operation manuals and maintenance guides
Global After-Sales Service
✅ Experienced engineers available for on-site installation and commissioning worldwide
✅ Free operator and maintenance personnel training at our factory or your site
✅ 12-month full equipment warranty, 6-month warranty for wearing parts
✅ Global original spare parts supply with 24-hour response time
✅ Lifetime technical support and equipment upgrade services
Success Cases
500t/d Magnetite Mine in Tanzania, Africa
- Adopted 3 sets of YTO-CTB-9024 magnetic separators for roughing and cleaning operations
- Achieves iron concentrate grade of 65% with recovery rate above 96%
- Stable operation for 3 years with no magnetic system demagnetization issues
- Low energy consumption saves over 25,000 kWh of electricity annually
300t/d Hematite Processing Plant in Guinea
- Equipped with 2 sets of YTO high-gradient magnetic separators and 4 sets of CTB separators
- Successfully processes low-grade hematite ore with 25% Fe content
- Final iron concentrate grade reaches 62% with 85% recovery rate
- Helped the client achieve profitable operation within 6 months of commissioning
800t/d Quartz Sand Purification Plant in Jiangxi, China
- Installed 5 sets of YTO-CTB-7518 magnetic separators for iron removal
- Reduces iron oxide content from 0.3% to below 0.015%
- Produces high-purity quartz sand suitable for glass and ceramic manufacturing
- Modular design allows easy expansion to meet increasing production demands
