Introduction

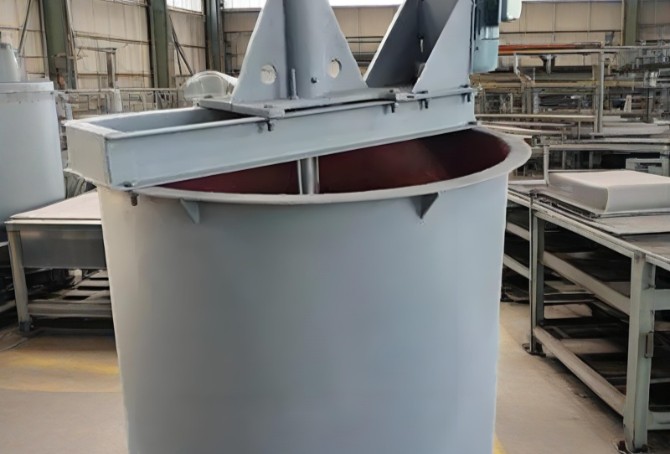

The YTO XB series mining agitation tanks are heavy-duty cylindrical mixing vessels specifically engineered for uniform slurry agitation, chemical reagent mixing and mineral leaching processes in gold, copper, iron, tungsten and other mineral processing plants. Featuring a robust welded steel structure, high-efficiency impeller system and reliable transmission mechanism, these industrial mixing tanks ensure complete suspension of solid particles and thorough mixing of reagents with slurry, which is critical for achieving optimal flotation and leaching recovery rates. As essential equipment between grinding/classification and flotation/leaching processes, YTO agitation tanks play a vital role in maximizing mineral recovery and overall plant profitability.
Core Advantages
✅High-Efficiency Impeller Design
- Optimized three-blade propeller impeller creates strong axial and radial flow patterns, ensuring uniform suspension of solid particles up to 1mm in diameter and preventing sedimentation at the tank bottom.
✅ Robust Construction
- Tank body manufactured from 6-16mm thick Q235B steel plate with reinforced ribs for exceptional structural rigidity. Optional rubber or polyurethane linings available for corrosive or highly abrasive slurries.
✅Reliable Transmission System
- Equipped with hardened gear reducer and high-strength alloy steel shaft, providing smooth operation and long service life even under continuous 24-hour working conditions.
✅Energy Efficient Operation
- Advanced hydraulic design reduces power consumption by 20-30% compared to traditional agitation tanks while maintaining superior mixing performance.
✅Multiple Configuration Options
- Available with single or dual impellers, adjustable shaft height, air inflation system for flotation conditioning, and heating/cooling jackets for special process requirements.
✅Easy Maintenance & Installation
- Modular design with bolted connections allows for quick assembly and disassembly. All wearing parts are easily accessible for inspection and replacement.
✅Large Capacity Range
- Standard models available from 0.5m³ to 100m³ capacity, with custom sizes up to 200m³ available upon request to meet large-scale mining operation requirements.
✅Integrated Dosing System
- Optional automatic chemical dosing system can be integrated with the agitation tank for precise reagent addition and process control.
Working Principles
The YTO XB agitation tank operates on the principle of mechanical agitation. The electric motor drives the vertical shaft and impeller to rotate at a constant speed through the gear reducer. As the impeller rotates, it creates a powerful downward flow that draws slurry from the bottom of the tank and propels it upward, creating a continuous circulation pattern throughout the vessel. This turbulent flow ensures that solid particles remain suspended in the liquid phase and that chemical reagents are thoroughly mixed with the slurry. For flotation conditioning applications, an optional air inflation system introduces fine air bubbles into the slurry, preparing it for the subsequent flotation process.
Technical Specifications
| Model | Tank Diameter (mm) | Tank Height (mm) | Effective Volume (m³) | Impeller Diameter (mm) | Rotational Speed (r/min) | Motor Power (kW) | Tank Weight (kg) |
| YTO-XB-500 | 500 | 600 | 0.12 | 200 | 320 | 0.75 | 120 |
| YTO-XB-1000 | 1000 | 1200 | 0.85 | 400 | 210 | 2.2 | 380 |
| YTO-XB-1500 | 1500 | 1800 | 2.8 | 600 | 160 | 4.0 | 850 |
| YTO-XB-2000 | 2000 | 2400 | 6.5 | 800 | 130 | 7.5 | 1600 |
| YTO-XB-2500 | 2500 | 3000 | 13 | 1000 | 110 | 11 | 2800 |
| YTO-XB-3000 | 3000 | 3600 | 22 | 1200 | 95 | 15 | 4200 |
| YTO-XB-3500 | 3500 | 4200 | 35 | 1400 | 85 | 22 | 6500 |
| YTO-XB-4000 | 4000 | 4800 | 52 | 1600 | 75 | 30 | 9200 |
Customization Options: Rubber-lined tanks, polyurethane-lined tanks, stainless steel tanks for corrosive applications, air inflation systems, heating jackets, and automatic control systems are available upon request.
Application Fields
Slurry conditioning before flotation, cyanide leaching of gold ore, and agitation of mineral concentrates
Coal slurry mixing and reagent conditioning in coal flotation plants
Leaching of non-ferrous metals and agitation of metallurgical slurries
Mixing of chemical solutions, suspension of solid catalysts, and preparation of chemical reagents
Sludge conditioning, wastewater treatment, and neutralization of acidic/alkaline effluents
Mixing of cement slurry and preparation of gypsum suspensions
Iron removal from cement raw materials and aggregates
Typical Process Flows
Flotation Conditioning System
Ball Mill → Spiral Classifier → Hydrocyclone → YTO XB Agitation Tank (with reagent dosing) → Flotation Machine
Gold Cyanide Leaching System
Crushed Ore → Ball Mill → YTO XB Leaching Agitation Tank (with cyanide addition) → Carbon Adsorption Column → Elution Circuit
Tailings Neutralization System
Tailings Thickener → YTO XB Neutralization Tank (with lime addition) → Tailings Pump → Tailings Storage Facility
YTO Service Commitment
Pre-Sales Engineering Support
✅ Free on-site investigation and slurry characteristic analysis
✅ Professional tank selection and process flow design by experienced mining engineers
✅ Detailed investment budget and operating cost analysis
✅ Customized solutions for special process requirements (high temperature, corrosive slurries, etc.)
Manufacturing & Quality Assurance
✅ Strict manufacturing processes in accordance with ISO9001:2015 quality management system
✅ Comprehensive leak testing and performance testing before delivery
✅ Export-standard packaging for safe international sea and air transportation
✅ Complete set of technical documents, operation manuals and maintenance guides
Global After-Sales Service
✅ Experienced engineers available for on-site installation and commissioning worldwide
✅ Free operator and maintenance personnel training at our factory or your site
✅ 12-month full equipment warranty, 6-month warranty for wearing parts
✅ Global original spare parts supply with 24-hour response time
✅ Lifetime technical support and equipment upgrade services
Success Cases
200t/d Gold CIL Plant in Ghana, Africa
- Adopted 8 sets of YTO-XB-3000 leaching agitation tanks
- Successfully operates 24/7 in harsh tropical climate conditions
- Uniform agitation ensures gold leaching recovery rate above 92%
- Rubber-lined tanks provide excellent corrosion resistance against cyanide solution
300t/d Copper Ore Processing Plant in Zambia
- Equipped with 6 sets of YTO-XB-2500 flotation conditioning tanks
- Precise reagent mixing improves copper flotation recovery by 8%
- Energy-efficient design saves over 15,000 kWh of electricity annually
- Low maintenance requirements reduce operational downtime
500t/d Iron Ore Processing Plant in Hebei, China
- Installed 4 sets of YTO-XB-4000 slurry mixing tanks
- Handles high-density iron ore slurry with 60% solid concentration
- Reinforced steel structure withstands heavy loads and abrasive wear
- Helped the client increase production capacity by 20%
