Introduction
The YTO series ore feeders include GD series heavy-duty apron feeders and BK series pendulum feeders, specially designed for uniform and quantitative feeding of ores and bulk materials in mineral processing plants, quarries and coal mines. They are the essential connecting equipment between ore bins and crushing/grinding systems, ensuring stable operation of the entire production line. With robust construction and precise control capabilities, YTO feeders have been widely used in mining projects worldwide.
YTO-GD Series Heavy-Duty Apron Feeders
Ideal for feeding large, abrasive and high-density materials
Core Advantages
✅Superior Heavy-Load Capacity
- Specially engineered to handle ore blocks up to 800mm and withstand impact loads over 2 tons, making it the only reliable option for primary crushing feeding
✅ Zero Blockage Design
- Interlocking chain plate structure with no gaps, preventing material jamming even when processing sticky clay-containing ores
✅Precise Variable Speed Control
- Equipped with frequency conversion drive system, feeding rate can be steplessly adjusted from 0 to 100% to match downstream equipment capacity
✅Exceptional Wear Resistance
- Chain plates made of 16-20mm thick high-manganese steel, service life up to 3-5 years under harsh conditions
✅Heavy-Duty Transmission System
- Hardened gear reducer and high-strength roller chain ensure reliable operation under continuous full-load conditions
✅Sealed Dust-Proof Structure
- Fully enclosed housing prevents dust spillage, meeting strict environmental protection requirements
Working Principles
The apron feeder consists of a driving device, head/tail sprockets, heavy-duty chains, wear-resistant trough plates and a steel frame. The motor drives the sprockets to rotate through the reducer, which in turn drives the chains and trough plates to move in a continuous loop. Materials discharged from the ore bin fall onto the trough plates and are transported forward at a controlled speed to the receiving equipment (usually jaw crushers or gyratory crushers).
Technical Specifications
| Model | Trough Width (mm) | Trough Length (mm) | Capacity (t/h) | Max Feed Size (mm) | Motor Power (kW) | Weight (kg) |
| YTO-GD-800 | 800 | 3000 | 50-200 | 300 | 7.5 | 2800 |
| YTO-GD-1000 | 1000 | 4000 | 100-350 | 400 | 11 | 4200 |
| YTO-GD-1200 | 1200 | 5000 | 200-500 | 500 | 15 | 5800 |
| YTO-GD-1500 | 1500 | 6000 | 300-800 | 650 | 22 | 8500 |
| YTO-GD-1800 | 1800 | 7000 | 500-1200 | 800 | 30 | 12000 |
Note: Customized lengths and special wear-resistant linings are available upon request
YTO-BK Series Pendulum Feeders
Ideal for quantitative feeding of fine and medium-grained materials
Core Advantages
✅ High Feeding Accuracy
- Uniform and stable feeding with error rate less than 5%, ensuring optimal grinding efficiency of ball mills
✅ Simple & Reliable Structure
- Only one moving part (the pendulum trough), with minimal failure points and easy maintenance
✅Ultra-Low Energy Consumption
- Power consumption is only 1/10 of screw feeders for the same capacity, significantly reducing operating costs
✅ Adjustable Feeding Rate
- Eccentric stroke can be easily adjusted to change feeding volume without stopping the equipment
✅ Compact Design
- Small footprint, can be directly installed under ore bins or hoppers without additional support structures
✅ Wide Material Adaptability
- Suitable for feeding various dry bulk materials with particle size less than 50mm
Working Principle

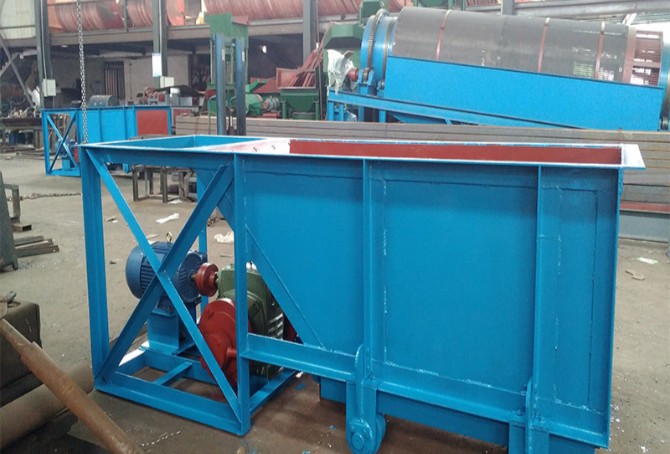

The pendulum feeder consists of a driving motor, eccentric shaft, connecting rod, pendulum trough and frame. The motor drives the eccentric shaft to rotate through a V-belt, which converts rotary motion into reciprocating linear motion of the pendulum trough via the connecting rod. As the trough moves forward, it carries a certain amount of material and discharges it at the front end; as it moves backward, the material in the bin fills the trough again. This periodic motion achieves continuous and uniform feeding.
Technical Specifications
| Model | Trough Size (mm) | Eccentric Stroke (mm) | Capacity (t/h) | Max Feed Size (mm) | Motor Power (kW) | Weight (kg) |
| YTO-BK-400 | 400×400 | 0-80 | 5-20 | 50 | 1.5 | 180 |
| YTO-BK-500 | 500×500 | 0-100 | 10-35 | 50 | 2.2 | 250 |
| YTO-BK-600 | 600×600 | 0-120 | 20-60 | 50 | 3.0 | 320 |
| YTO-BK-800 | 800×800 | 0-150 | 40-100 | 50 | 4.0 | 450 |
| YTO-BK-1000 | 1000×1000 | 0-180 | 60-150 | 50 | 5.5 | 580 |
Note: Models with automatic control systems are available for closed-loop production lines
Application Fields
Feeding of gold, iron, copper, tungsten and other ores from ore bins to crushers and ball mills
Feeding of raw materials and finished aggregates
Feeding of raw coal, clean coal and coal slime
Feeding of limestone, gypsum and cement clinker
Feeding of chemical raw materials and fertilizers
Feeding of construction waste and recycled materials
Typical Process Flows
Primary Crushing Feeding System
Run-of-Mine Ore Bin → YTO-GD Apron Feeder → Jaw Crusher → Belt Conveyor → Cone Crusher
Grinding Circuit Feeding System
Crushed Ore Bin → YTO-BK Pendulum Feeder → Ball Mill → Spiral Classifier → Beneficiation Equipment
Combined Feeding System
Raw Ore Bin → YTO-GD Apron Feeder → Jaw Crusher → Intermediate Bin → YTO-BK Pendulum Feeder → Ball Mill
YTO Service Commitment
Pre-Sales Service
✅ Free on-site investigation and material characteristic analysis
✅ Professional feeder selection and system design
✅ Detailed investment budget and operating cost analysis
✅ Customized solutions for special working conditions
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Comprehensive load testing before delivery
✅ Export-standard packaging for safe international shipping
✅ Complete set of technical documents and operation manuals
After-Sales Service
✅ Experienced engineers dispatched for on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year full equipment warranty, 6-month warranty for wearing parts
✅ Global original spare parts supply with 24-hour response
✅ Lifetime technical support and equipment upgrade services
Success Cases
500t/d Iron Ore Project in Ghana, Africa
- Adopted 1 set of YTO-GD-1200 apron feeder for primary crushing feeding
- Successfully handles 500mm iron ore blocks with no blockage issues
- Stable operation for 2 years with zero major breakdowns
- Feeding accuracy ensures optimal crusher utilization rate of 95%
100t/d Gold Ore Processing Plant in Jiangxi, China
- Equipped with 2 sets of YTO-BK-600 pendulum feeders for ball mill feeding
- Feeding error rate less than 3%, improving grinding efficiency by 12%
- Low energy consumption, saving over 10,000 kWh of electricity annually
- Simple operation allows local workers to maintain independently
300t/h Coal Preparation Plant in Russia
- Installed 3 sets of YTO-GD-1500 apron feeders and 4 sets of YTO-BK-800 pendulum feeders
- Operates stably in -30℃ low-temperature environment
- Fully enclosed structure prevents coal dust pollution
- Helped client achieve full automation of the coal preparation process
