Introduction
The YTO-TS series rotary trommel screen is a versatile screening and washing equipment widely used in mineral processing, aggregate production and waste recycling. It is specially designed for handling sticky, high-clay content materials that are difficult to screen with traditional vibrating screens. Available in dry and wet washing configurations, it provides reliable classification, desliming and scrubbing functions with high throughput and low maintenance costs.
Core Advantages
✅Superior Anti-Clogging Performance
- Unique rotating drum design with self-cleaning brushes prevents screen blockage, even for high-clay content materials
- 30% higher screening efficiency than vibrating screens for sticky and wet materials
- Adjustable drum rotation speed to optimize screening performance for different material properties
- No material accumulation on the screen surface, ensuring continuous stable operation
✅ High Throughput & Large Capacity
- Large screening area with multi-stage screen sections for simultaneous classification of multiple particle sizes
- Processing capacity up to 500 t/h, suitable for large-scale mining and quarrying operations
- Uniform material distribution inside the drum, maximizing screen utilization
- Low energy consumption per ton of processed material
✅Ultra-Durable Construction
- High-manganese steel screen plates with 2-3 years service life, 2 times longer than ordinary steel screens
- Heavy-duty steel frame with reinforced structure for long-term reliable operation
- Sealed bearing assembly with double protection against dust and water
- Optional wear-resistant rubber lining for highly abrasive materials
✅ Multi-Functional Integrated Design
- Combines screening, washing, scrubbing and desliming functions in one unit
- Wet type trommels equipped with high-pressure water spray nozzles for effective clay removal
- Can be customized with different screen aperture combinations to meet specific classification requirements
- Integrated discharge chutes for separate collection of different size fractions
✅Easy Installation & Maintenance
- Modular design for quick transportation and assembly
- Simple structure with few moving parts, minimal maintenance requirements
- Quick-change screen plates for easy replacement
- Low noise operation (<85dB) and stable performance under 24/7 continuous operation
Working Principles

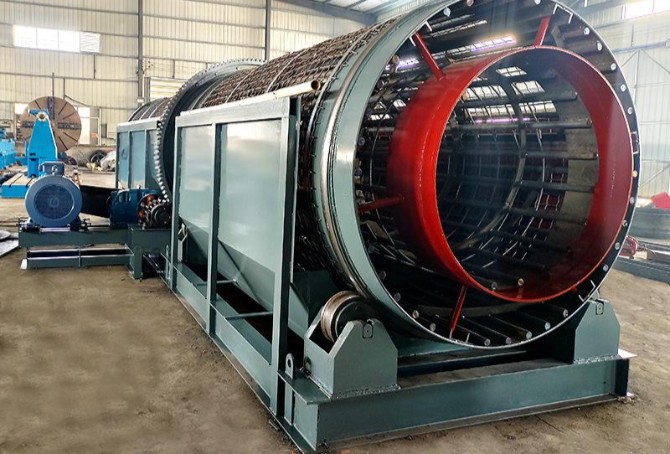

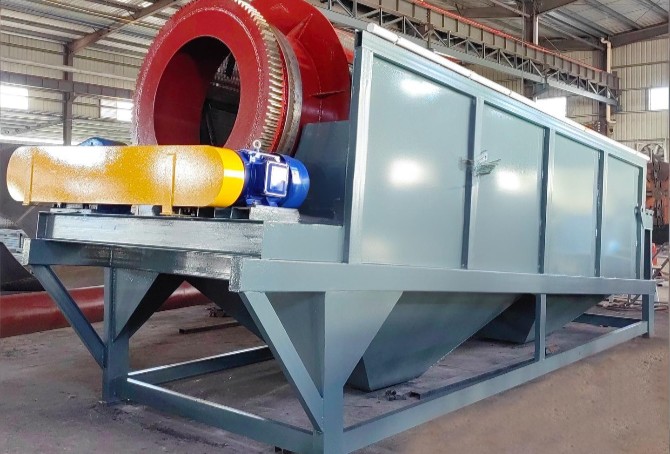

The rotary trommel screen consists of a slightly inclined rotating drum with multiple screen sections of different apertures. Material is fed into the inlet end of the drum. As the drum rotates, smaller particles pass through the screen openings and are collected in separate hoppers below, while larger particles move along the drum and are discharged from the outlet end.
- Dry type trommel: Used for screening dry materials such as coal, gravel and construction waste
- Wet type/scrubbing trommel: Equipped with water spray nozzles and internal lifting plates to scrub and wash materials, ideal for alluvial gold, tin ore and other high-clay content minerals
Technical Specifications
| Model | Drum Diameter (mm) | Drum Length (mm) | Capacity (t/h) | Screen Aperture (mm) | Motor Power (kW) | Weight (kg) |
| YTO-TS-1020 | 1000 | 2000 | 10-30 | 1-50 | 4.0 | 1800 |
| YTO-TS-1230 | 1200 | 3000 | 30-80 | 1-80 | 5.5 | 2800 |
| YTO-TS-1540 | 1500 | 4000 | 80-150 | 1-100 | 11 | 4500 |
| YTO-TS-1850 | 1800 | 5000 | 150-250 | 1-150 | 15 | 7200 |
| YTO-TS-2060 | 2000 | 6000 | 250-500 | 1-200 | 22 | 10500 |
Note: Customized scrubbing trommels with high-pressure water systems and special screen configurations are available upon request
Application Fields
YTO-TS series rotary trommel screens are widely used in the following applications:
Screening and washing of alluvial gold, tin ore, iron ore, manganese ore and tungsten ore
Classification of sand, gravel and crushed stone
Coal screening and gangue removal
Sorting of concrete, brick and asphalt waste
Production of construction sand and industrial sand
Desliming and scrubbing of ore before further processing
Typical Process Flows
Alluvial Gold Washing & Screening Process
Run-of-Mine Ore → YTO-TS Scrubbing Trommel Screen → Oversize waste rock discarded | Undersize to spiral classifier → Gravity separation circuit
Iron Ore Crushing & Screening Process
Jaw Crusher Discharge → YTO-TS Rotary Trommel Screen → Oversize to cone crusher | Undersize to ball mill feed hopper
YTO Service Commitment
Pre-Sales Service
✅ Free material screening tests and process design
✅ Professional equipment selection and configuration recommendations
✅ Plant layout design and installation guidance
✅ Detailed investment budget and return on investment analysis
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Factory inspection and acceptance before delivery
✅ Export-standard packaging for international shipping
✅ Complete set of technical documents and operation manuals
After-Sales Service
✅ Experienced engineers dispatched for on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Global supply of original spare parts with fast delivery
✅ 24/7 technical support via phone, email and video conference
Success Cases
300t/d Alluvial Gold Project in Tanzania, Africa
- Adopted 1×YTO-TS-1540 scrubbing trommel screen with high-pressure water system
- Effectively removed 25-30% clay content from ore, preventing downstream equipment blockage
- Screening efficiency reached 92%, ensuring maximum gold recovery
- Stable operation for 1 year with no screen blockage issues
500t/d Iron Ore Project in Ghana, Africa
- Equipped with 1×YTO-TS-1850 rotary trommel screen
- Classified crushed iron ore into three size fractions for optimal processing
- Processing capacity of 20-25 t/h, matching the crushing circuit perfectly
- Reduced cone crusher load by 20%, increasing overall plant efficiency
200t/h River Pebble Crushing Line in Philippines
- Installed 1×YTO-TS-2060 trommel screen
- Screened river pebbles into different size grades for construction aggregates
- High throughput and low maintenance cost
- Excellent screening accuracy with less than 3% oversize material
