Jiangxi Yituo Mining Equipment | Reliable Steep-Incline Material Handling Solutions for Mining & Aggregate Operations

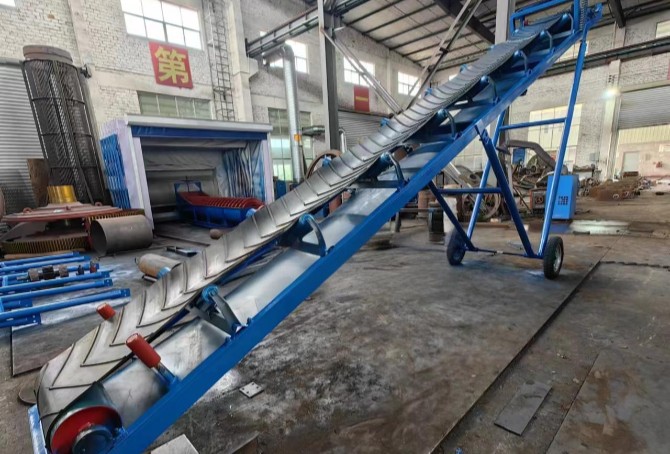

The YTO series mobile inclined belt conveyors are specially engineered for efficient, slip-free transportation of ores, aggregates, coal and bulk materials at steep angles (up to 45°) in mining plants, quarries, sand production lines and coal preparation facilities. Equipped with heavy-duty chevron cleated belts and mobile wheeled frames, these conveyors solve the material sliding problem that plagues standard flat belt conveyors, while offering unmatched flexibility for on-site relocation. As the essential connecting link between crushing, screening, grinding and beneficiation equipment, YTO belt conveyors ensure seamless material flow and maximize overall production line efficiency.
Core Advantages
✅Steep-Incline Anti-Slip Performance
- Reinforced chevron cleated rubber belt prevents material backflow even at 30-45° inclines, reducing required floor space by 50% compared to horizontal conveyor systems
✅ Fully Mobile & Rapid Deployment
- Integrated heavy-duty rubber wheels and adjustable height frame allow quick repositioning between production zones without permanent civil construction
✅Heavy-Duty Impact Resistance
- Thickened steel frame and impact-resistant idlers withstand heavy loads and impact from large ore blocks up to 300mm
✅Precise Speed Regulation
- Equipped with frequency conversion drive system, conveying speed can be steplessly adjusted to perfectly match upstream and downstream equipment capacity
✅Exceptional Wear Resistance
- 5-12mm thick multi-layer rubber belt with high-tensile steel cord reinforcement, service life up to 2-4 years under harsh mining conditions
✅Dust Control Options
- Optional fully enclosed housing prevents dust spillage and material loss, complying with strict global environmental protection standards
Working Principles
The inclined belt conveyor consists of a driving unit (motor + gear reducer), head/drive drum, tail/take-up drum, chevron cleated rubber belt, carrying idlers, return idlers, reinforced steel frame and mobile wheel assembly. The motor drives the head drum through the gear reducer, and friction between the drum and belt drives the continuous circular motion of the belt. Materials discharged from upstream equipment fall onto the lower end of the belt, and the raised chevron cleats grip the material to carry it upward to the elevated discharge point, where it is transferred to the next processing stage or stockpile.
Technical Specifications
| Model | Belt Width (mm) | Conveying Length (m) | Max Incline Angle (°) | Capacity (t/h) | Max Feed Size (mm) | Motor Power (kW) | Weight (kg) |
| YTO-BC-500 | 500 | 5-15 | 40 | 30-100 | 100 | 3-7.5 | 650-1200 |
| YTO-BC-650 | 650 | 6-20 | 40 | 80-200 | 150 | 5.5-11 | 900-1800 |
| YTO-BC-800 | 800 | 8-25 | 35 | 150-400 | 200 | 7.5-15 | 1300-2500 |
| YTO-BC-1000 | 1000 | 10-30 | 35 | 300-600 | 250 | 11-22 | 1800-3500 |
| YTO-BC-1200 | 1200 | 12-35 | 30 | 500-800 | 300 | 15-30 | 2500-4800 |
Note: Customized lengths, fixed installation models, side skirts and fully enclosed dust covers are available upon request.
Application Fields
Conveying run-of-mine ore, crushed ore, tailings and mineral concentrates between crushing, screening, grinding and beneficiation units
Transporting raw stone, crushed sand, gravel and finished aggregates to stockpiles or processing equipment
Handling raw coal, clean coal and coal slime in coal mines and coal preparation plants
Conveying limestone, gypsum, cement clinker and other bulk building materials
Transporting sorted construction debris and recycled aggregates
Moving blasted rock and crushed stone from quarry faces to primary crushing stations
Typical Process Flows
Primary Crushing Conveying System
Run-of-Mine Ore Bin → Jaw Crusher → YTO Mobile Inclined Belt Conveyor → Cone Crusher
Screening & Stockpiling System
Vibrating Screen → YTO Inclined Belt Conveyor → Finished Product Stockpile
Complete Beneficiation Line Conveying
Intermediate Ore Bin → Pendulum Feeder → Ball Mill → Spiral Classifier → YTO Belt Conveyor → Flotation Machine
YTO Service Commitment
Pre-Sales Service
✅ Free on-site investigation and material characteristic analysis
✅ Professional conveyor selection and system layout design
✅ Detailed investment budget and operating cost analysis
✅ Customized solutions for special working conditions (high temperature, corrosive materials, etc.)
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Comprehensive load testing and trial operation before delivery
✅ Export-standard packaging for safe international shipping
✅ Complete set of technical documents and operation manuals
After-Sales Service
✅ Experienced engineers dispatched for on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year full equipment warranty, 6-month warranty for wearing parts
✅ Global original spare parts supply with 24-hour response
✅ Lifetime technical support and equipment upgrade services
Success Cases
200t/d Alluvial Gold Project in Tanzania, Africa
- Adopted 3 sets of YTO-BC-800 mobile inclined belt conveyors
- Successfully conveys gold-bearing gravel at 35° incline with zero material backflow
- Mobile design allows rapid relocation between different mining pits
- Stable operation for 3 years with only routine belt maintenance
300t/d Tungsten Ore Processing Plant in Jiangxi, China
- Equipped with 5 sets of YTO-BC-1000 fixed inclined belt conveyors
- Connects crushing, screening, grinding and flotation processes seamlessly
- High wear resistance belt handles abrasive tungsten ore efficiently
- Helped client increase overall production line efficiency by 15%
500t/h Coal Mine in Inner Mongolia, China
- Installed 4 sets of YTO-BC-1200 enclosed belt conveyors
- Operates reliably in extreme temperature conditions (-30℃ to +40℃)
- Fully enclosed structure eliminates coal dust pollution
- Low energy consumption saves over 20,000 kWh of electricity annually
