Introduction

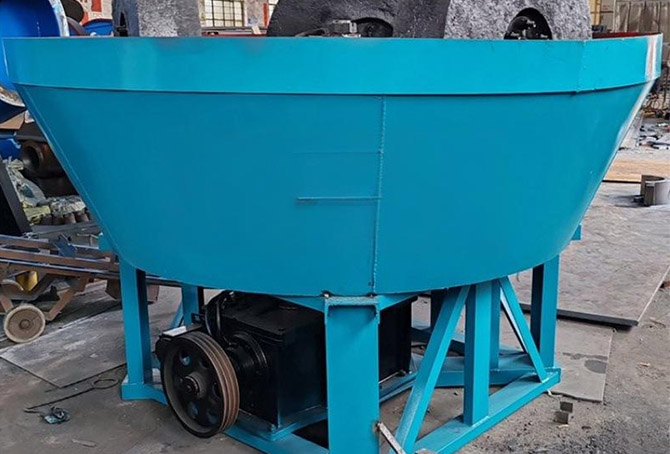

The YTO series gold wet pan mill (also known as gold stamp mill or edge runner mill) is a traditional yet highly efficient gravity separation and grinding equipment specially designed for gold ore processing. It combines grinding and concentration functions in one unit, making it the most cost-effective solution for small and medium-scale gold mines. Widely used in Africa, Southeast Asia and South America, it is ideal for processing both alluvial gold and hard rock gold ores with low investment and simple operation.
Core Advantages
✅Unbeatable Cost-Effectiveness
- 70% lower investment cost compared to ball mills with the same processing capacity
- No need for complex civil engineering works, can be installed and put into production within 3 days
- Low energy consumption, only 1/3 of ball mills for the same output
- Short payback period, usually within 3-6 months for small-scale projects
✅ High Gold Recovery Rate
- Integrated grinding and gravity separation process, effectively liberates gold particles
- Gold recovery rate reaches 85-95% for free-milling gold ores
- Specially designed pan structure prevents fine gold loss
- Can be used with amalgamation tables or shaking tables for further concentration
✅Simple Operation & Maintenance
- Extremely simple structure with only one moving part (the roller assembly)
- No professional technical personnel required, local workers can operate after simple training
- Few wearing parts, easy to replace, reducing downtime and maintenance costs
- Can operate continuously 24/7 with minimal supervision
✅ Ultra-Durable Construction
- High-manganese steel rollers and pans with service life of 2-3 years
- Heavy-duty cast iron frame for maximum stability and durability
- Reinforced transmission system with high torque capacity
- Designed to withstand harsh mining environments with minimal maintenance
✅Versatile Application Capabilities
- Suitable for both alluvial gold and hard rock gold ores
- Can process ores with particle size up to 30mm
- Also effective for processing silver, lead, zinc, copper and other heavy minerals
- Available in single-roller and double-roller configurations to meet different capacity needs
✅Environmentally Friendly Options
- Mercury-free operation available when combined with gravity separation equipment
- Closed water circulation system reduces water consumption by 80%
- No dust pollution during operation
- Complies with international environmental protection standards
Working Principles
The gold wet pan mill consists of a rotating circular pan and one or two heavy rollers mounted on a central shaft. As the pan rotates, the rollers roll over the ore material inside the pan, crushing and grinding it into fine particles. Under the combined action of centrifugal force and gravity, heavy gold particles settle to the bottom of the pan and are trapped in the grooves or collected by mercury (if used), while lighter gangue particles are washed out of the pan with water. The concentrated gold material is then further processed to produce final gold products.
Technical Specifications
| Model | Pan Diameter (mm) | Roller Diameter (mm) | Capacity (t/d) | Feed Size (mm) | Motor Power (kW) | Weight (kg) |
| YTO-1100 | 1100 | 500 | 1-3 | 0-20 | 7.5 | 1800 |
| YTO-1200 | 1200 | 550 | 3-5 | 0-25 | 11 | 2500 |
| YTO-1300 | 1300 | 600 | 5-8 | 0-25 | 15 | 3200 |
| YTO-1500 | 1500 | 700 | 8-15 | 0-30 | 22 | 4500 |
| YTO-1600 | 1600 | 750 | 15-25 | 0-30 | 30 | 5800 |
Note: Double-roller models with higher capacity are available upon request
Application Fields
YTO series ball mills are widely used in the following industries:
Processing of alluvial gold, placer gold and hard rock gold ores
Ideal for artisanal and small-scale mining operations
Recovering gold from old tailings dumps
Processing of silver, platinum and other precious metals
Beneficiation of lead, zinc, copper and iron ores
Perfect for locations with limited infrastructure and technical support
Typical Process Flows
Alluvial Gold Processing Flow
Run-of-Mine Ore → Trommel Screen → YTO Gold Wet Pan Mill → Amalgamation Table / Shaking Table → Gold Concentrate
Hard Rock Gold Processing Flow
Run-of-Mine Ore → Jaw Crusher → Hammer Crusher → YTO Gold Wet Pan Mill → Shaking Table → Gold Concentrate
Tailings Reprocessing Flow
Old Tailings → Re-screening → YTO Gold Wet Pan Mill → Spiral Chute → Final Concentrate
YTO Service Commitment
Pre-Sales Service
✅ Free ore testing and recovery rate analysis
✅ Professional process design and equipment configuration
✅ Detailed investment budget and return on investment calculation
✅ On-site investigation and installation guidance
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Comprehensive performance testing before delivery
✅ Export-standard packaging for safe international shipping
✅ Complete set of operation manuals and technical documents
After-Sales Service
✅ Engineers dispatched for on-site installation and commissioning
✅ Free training for local operators and maintenance personnel
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Global spare parts supply with fast delivery
✅ 24/7 technical support via phone and video conference
Success Cases
5t/d Hard Rock Gold Project in Ghana, Africa
- Adopted 2 sets of YTO-1200 gold wet pan mills
- Raw ore grade: 3.5 g/t Au, final concentrate grade: 120 g/t Au
- Overall gold recovery rate: 88%
- Total investment recovered in 4 months
- Equipment has been operating continuously for 2 years with minimal maintenance
10t/d Alluvial Gold Project in Tanzania
- Equipped with 1 set of YTO-1500 double-roller wet pan mill
- Processes alluvial gold ore with high clay content
- Gold recovery rate reaches 92%
- Simple operation allows local workers to run the plant independently
- Client has ordered 3 more units for expansion
8t/d Gold Tailings Reprocessing Project in Myanmar
- Installed 1 set of YTO-1300 wet pan mill
- Recovers gold from old tailings with grade of 0.8 g/t Au
- Produces 20-25 grams of gold per day
- Generates stable income with zero additional mining costs
- Environmentally friendly operation with no mercury use
