Introduction
YTO offers a complete range of high-performance crushing equipment designed for mining, quarrying and construction applications. Our jaw crushers, cone crushers and impact crushers deliver exceptional crushing efficiency, high reliability and low operating costs. Engineered to handle the toughest materials from hard granite to soft limestone, YTO crushers are the backbone of mineral processing and aggregate production plants worldwide.
Core Advantages
✅Superior Crushing Performance
- Optimized crushing chamber design delivers 30% higher crushing ratio than traditional equipment
- Uniform product size distribution with minimal oversize particles
- Adjustable discharge opening for flexible production requirements
- High throughput capacity with low energy consumption per ton
✅ Heavy-Duty Durable Construction
- High-manganese steel wear parts with 2-3 times longer service life
- Reinforced steel frame with stress-relieved welding for maximum strength
- Heavy-duty bearing assemblies with double sealing protection
- Designed for 24/7 continuous operation in harsh mining environments
✅Advanced Hydraulic System
- Hydraulic adjustment of discharge opening for quick and safe operation
- Hydraulic overload protection prevents damage from uncrushable materials
- Automatic clearing system for jammed materials, reducing downtime
- Smooth and reliable operation with minimal maintenance
✅ Intelligent Operation & Control
- Optional PLC control system with real-time monitoring of operating parameters
- Automatic lubrication system ensures proper equipment maintenance
- Remote monitoring and fault diagnosis capabilities
- User-friendly interface reduces operator training time
✅Modular & Flexible Design
- Compact design saves installation space and civil engineering costs
- Modular components for easy transportation and assembly
- Can be combined into fixed or mobile crushing plants
- Customizable configurations to meet specific project requirements
Product Range & Working Principles

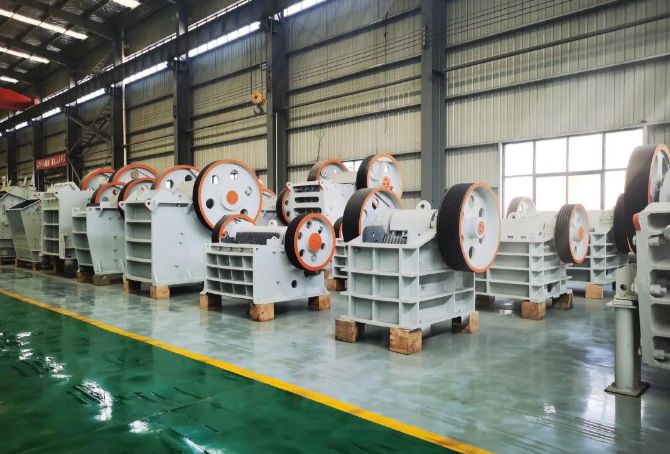

1. YTO-PE Series Jaw Crusher (Primary Crushing)
The jaw crusher uses compressive force to break materials between a fixed jaw plate and a moving jaw plate. It is ideal for primary crushing of hard and abrasive materials with compressive strength up to 320 MPa.
Key Features:
- Deep crushing chamber with no dead zones
- V-belt drive system for smooth operation
- Simple structure with easy maintenance
- Suitable for materials: granite, basalt, iron ore, gold ore, copper ore
2. YTO-PYB Series Cone Crusher (Secondary/ Tertiary Crushing)
The cone crusher utilizes gyrating motion between a concave liner and a mantle to crush materials. It provides excellent particle shape and high production efficiency for medium-hard to hard materials.
Key Features:
- Spring or hydraulic safety protection system
- Multiple crushing cavity types for different applications
- High crushing efficiency with low wear rate
- Suitable for materials: iron ore, copper ore, granite, basalt, limestone

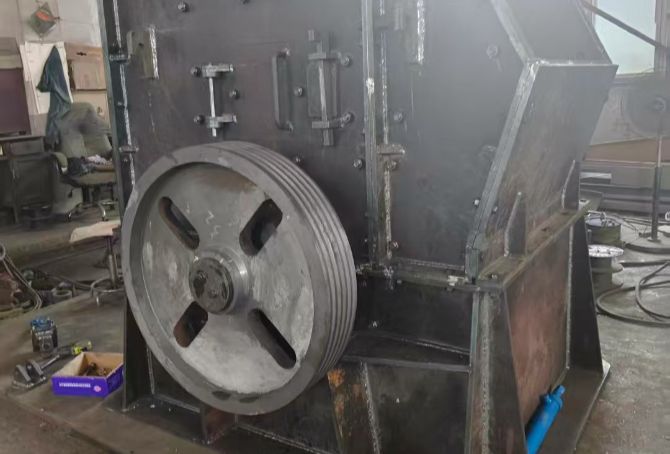

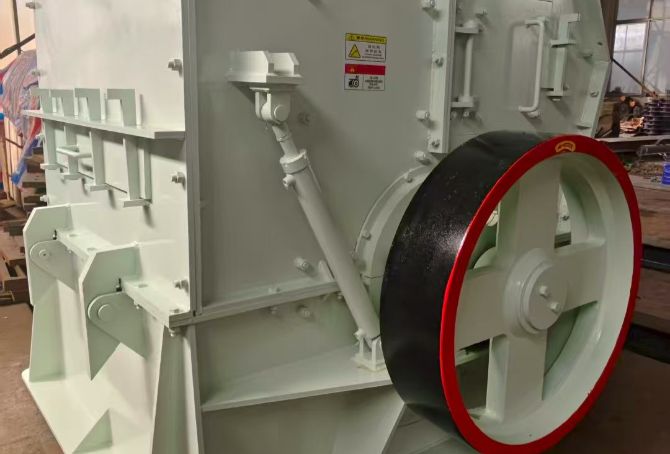

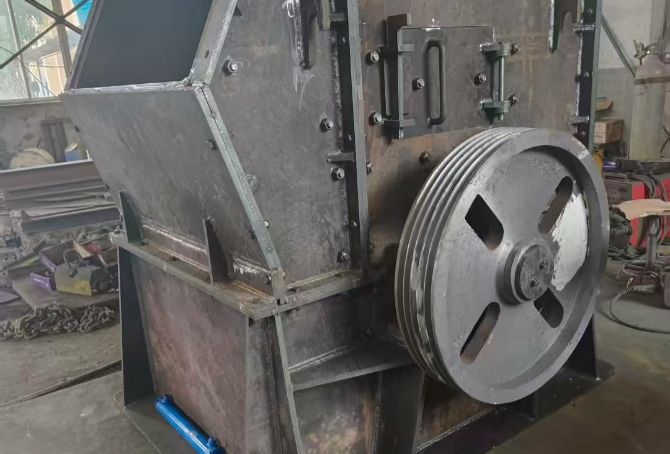

3. YTO-PF Series Impact Crusher (Secondary Crushing)
The impact crusher uses high-speed impact force to shatter materials against impact plates. It produces cubical-shaped products with excellent particle shape, ideal for aggregate production.
Key Features:
- Multi-chamber design for efficient crushing
- Adjustable impact plate gap for precise product size control
- Chrome alloy blow bars with high wear resistance
- Suitable for materials: limestone, dolomite, coal, gypsum
Technical Specifications
YTO-PE Series Jaw Crusher
| Model | Feed Opening Size (mm) | Max Feed Size (mm) | Discharge Opening (mm) | Capacity (t/h) | Motor Power (kW) | Weight (kg) |
| YTO-PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 15 | 2800 |
| YTO-PE-400×600 | 400×600 | 340 | 40-100 | 15-60 | 30 | 5800 |
| YTO-PE-600×900 | 600×900 | 500 | 65-160 | 30-120 | 55 | 17000 |
| YTO-PE-750×1060 | 750×1060 | 630 | 80-200 | 60-250 | 90 | 29000 |
YTO-PYB Series Cone Crusher
| Model | Cone Diameter (mm) | Feed Opening (mm) | Discharge Opening (mm) | Capacity (t/h) | Motor Power (kW) | Weight (kg) |
| YTO-PYB-600 | 600 | 65 | 12-25 | 15-40 | 30 | 5000 |
| YTO-PYB-900 | 900 | 115 | 15-50 | 50-100 | 55 | 11000 |
| YTO-PYB-1200 | 1200 | 150 | 20-60 | 100-200 | 110 | 24000 |
YTO-PF Series Impact Crusher
| Model | Rotor Diameter × Length (mm) | Feed Opening (mm) | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (kg) |
| YTO-PF-1010 | 1000×1050 | 400×430 | 350 | 50-80 | 55 | 9500 |
| YTO-PF-1214 | 1250×1400 | 400×1430 | 350 | 80-150 | 132 | 15000 |
| YTO-PF-1315 | 1320×1500 | 860×1520 | 500 | 150-250 | 160 | 20000 |
Note: Customized models and mobile crushing plants are available upon request
Application Fields
YTO crushing equipment is widely used in:
Primary and secondary crushing of gold, iron, copper, tungsten and other ores
Granite, basalt, limestone and river pebble crushing for construction
Stone production for roads, railways and buildings
Coal crushing and screening for power plants and industrial use
Crushing and recycling of concrete and asphalt waste
Processing of barite, fluorite, gypsum and other non-metallic minerals
Typical Process Flows
Complete Stone Crushing & Screening Plant
Run-of-Mine Material → YTO-PE Jaw Crusher (Primary) → Vibrating Screen → YTO-PYB Cone Crusher / YTO-PF Impact Crusher (Secondary) → Vibrating Screen → Finished Products (0-5mm, 5-10mm, 10-20mm, 20-40mm)
Mineral Processing Crushing Circuit
Run-of-Mine Ore → YTO-PE Jaw Crusher → YTO-PYB Cone Crusher → Vibrating Screen → Ball Mill Feed Hopper → Grinding & Classification Circuit
YTO Service Commitment
Pre-Sales Service
✅ Free site investigation and material testing
✅ Professional crushing plant design and equipment configuration
✅ Detailed investment budget and return on investment analysis
✅ Customized solutions for specific project requirements
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Factory inspection and acceptance before delivery
✅ Export-standard packaging for international shipping
✅ Complete technical documentation and operation manuals
After-Sales Service
✅ Experienced engineers dispatched for on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Global spare parts supply with fast delivery
✅ 24/7 technical support via phone, email and video conference
Success Cases
300t/h Granite Crushing Plant in Niger
- Adopted 1×YTO-PE-750×1060 jaw crusher + 2×YTO-PYB-1200 cone crushers
- Produces 4 grades of construction aggregates
- Capacity: 300-350 t/h
- Stable operation for 3 years with minimal downtime
100t/h Mobile Stone Crushing Plant in Russia
- Equipped with YTO mobile jaw crusher and mobile impact crusher
- Fully mobile design for easy relocation between sites
- Processes limestone, basalt and granite
- Commissioned in 2025, now operating successfully in multiple locations
200t/h River Pebble Crushing Line in Philippines
- Installed YTO-PE-600×900 jaw crusher + YTO-PF-1315 impact crusher
- Produces high-quality concrete aggregates
- Capacity: 200-250 t/h
- Excellent particle shape with less than 5% flakiness content
