Introduction

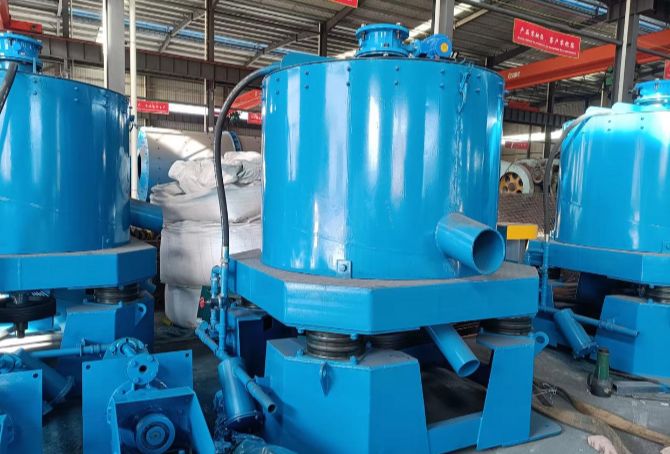

The YTO-LX series centrifugal concentrator is an advanced gravity separation equipment independently developed by YTO, utilizing enhanced centrifugal force field technology to solve the long-standing industry challenge of fine and ultra-fine heavy mineral recovery. It generates 60-120 times the force of gravity, achieving exceptional separation efficiency for minerals with density differences greater than 1.5 g/cm³. Completely reagent-free and environmentally friendly, it is the gold standard for precious metal recovery and tailings reprocessing worldwide.
Core Advantages
✅Unmatched Ultra-Fine Particle Recovery
- Generates 60-120G centrifugal acceleration, amplifying density differences between minerals
- Effectively recovers particles as fine as 0.02mm, with gold recovery rates up to 95% for +0.03mm particles
- Outperforms traditional shaking tables and spiral chutes by 25-40% in fine mineral recovery
- Captures micron-sized gold particles that would otherwise be lost in tailings
✅ Industry-Leading Enrichment Ratio
- Achieves 1,000-3,000 times enrichment ratio in a single pass
- Reduces downstream processing volume by over 99%, significantly lowering operating costs
- Produces high-grade concentrate directly, eliminating multiple cleaning stages
- Ideal for low-grade ore (0.1-2 g/t gold) and tailings reprocessing applications
✅Zero Chemicals & Eco-Friendly Operation
- 100% gravity-based separation, no chemical reagents required
- Eliminates environmental pollution and reagent costs associated with flotation
- Closed-loop water system available, reducing water consumption by 85%
- Complies with the strictest global environmental protection standards
✅ Ultra-Durable & Low Maintenance
- High-wear polyurethane lining with 5-8 year service life, 3 times longer than rubber linings
- Heavy-duty cast iron frame with vibration damping design for stable operation
- Few moving parts, minimal maintenance requirements
- Quick-change concentrate collection system for easy operation
✅Intelligent & Fully Automated
- PLC control system with touch screen interface for real-time parameter monitoring
- Automatic cycle control for feeding, separation and concentrate discharge
- Adjustable rotation speed (300-800 rpm) and backwash pressure (0.05-0.3 MPa)
- Remote monitoring and fault diagnosis capabilities available
Working Principle
The centrifugal concentrator operates on the principle of enhanced gravity separation. Ore slurry is fed into the center of a rapidly rotating conical bowl. Under the influence of strong centrifugal force, denser heavy minerals (such as gold, platinum and tungsten) settle against the inner wall of the bowl and become trapped in the specially designed riffles. Lighter gangue particles remain suspended in the slurry and are carried over the top of the bowl as tailings. Periodically, high-pressure backwash water is injected to flush the concentrated heavy minerals from the riffles into the concentrate collection tank.
Technical Specifications
| Model | Bowl Diameter (mm) | Capacity (t/h) | Feed Size (mm) | Motor Power (kW) | G-Force | Backwash Water (m³/h) | Weight (kg) |
| YTO-LX-30 | 300 | 1-3 | 0-3 | 3.0 | 60 | 2-3 | 350 |
| YTO-LX-60 | 600 | 5-10 | 0-4 | 7.5 | 80 | 5-8 | 950 |
| YTO-LX-80 | 800 | 15-30 | 0-5 | 15 | 100 | 10-15 | 1,600 |
| YTO-LX-100 | 1000 | 30-50 | 0-6 | 22 | 120 | 20-30 | 2,500 |
| YTO-LX-120 | 1200 | 50-80 | 0-6 | 37 | 120 | 30-45 | 3,800 |
Note: Customized models with continuous discharge systems are available for large-scale operations
Application Fields
YTO-LX series centrifugal concentrators are ideal for the following applications:
Placer gold, rock gold, silver and platinum group metals recovery
Tungsten, tin, tantalum-niobium and chromite separation
Hematite, ilmenite and manganese ore beneficiation
Recovering valuable minerals from old tailings dumps
Mobile and portable processing plants for remote mining sites
Pre-concentration at ball mill discharge to reduce grinding costs
Typical Process Flows
Alluvial Gold Processing Flow
Run-of-Mine Ore → Trommel Screen → Rotary Scrubber → YTO-LX Centrifugal Concentrator (Rougher) → YTO-LX Centrifugal Concentrator (Cleaner) → YTO-6S Shaking Table → Gold Concentrate
Hard Rock Gold Pre-Concentration Flow
Ball Mill Discharge → Hydrocyclone → YTO-LX Centrifugal Concentrator → Coarse Gold Concentrate | Tailings to Flotation Circuit
Tailings Reprocessing Flow
Old Tailings → Re-grinding → Classification → YTO-LX Centrifugal Concentrator → Concentrate Dewatering → Final Product
YTO Service Commitment
Pre-Sales Service
✅ Free ore testing with detailed recovery rate reports
✅ Professional process design and equipment configuration recommendations
✅ On-site investigation and plant layout design
✅ Investment budget and return on investment analysis
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Factory inspection and acceptance before delivery
✅ Export-standard packaging for international shipping
✅ Complete set of technical documents and operation manuals
After-Sales Service
✅ Experienced engineers dispatched for on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Global spare parts supply with fast delivery
✅ 24/7 technical support via phone, email and video conference
Success Cases
200t/d Alluvial Gold Project in Ghana, Africa
- Adopted 4 sets of YTO-LX-80 centrifugal concentrators
- Raw ore grade: 0.35 g/t Au, final concentrate grade: 800-1200 g/t Au
- Overall gold recovery rate: 92%, compared to 68% with previous equipment
- Annual additional profit: 1.8 million USD, investment payback period: 7 months
500t/d Gold Tailings Reprocessing Project in Shandong, China
- Installed 6 sets of YTO-LX-100 centrifugal concentrators
- Tailings grade: 0.18 g/t Au, recovered gold grade: 0.85 g/t Au
- Recovers 12-15 kg of gold monthly from previously discarded tailings
- Generates 3.2 million RMB in annual revenue with zero additional mining costs
