Introduction

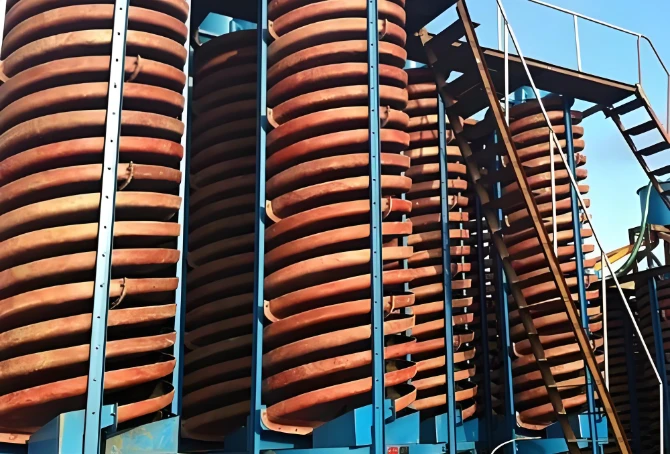

The YTO-LL series spiral chute is a new generation of gravity separation equipment independently developed by Jiangxi Yituo. Adopting the original Vortex-Enhanced Flow Field Technology and Nano Wear-Resistant Lining, it achieves a major breakthrough in the long-standing challenge of fine-grained mineral separation. Widely used in the beneficiation of gold, iron, ilmenite, tin, tungsten and many other ores, it features high processing capacity, excellent recovery rate, stable operation and low energy consumption, making it the preferred equipment for gravity separation operations in mining enterprises worldwide.
Core Advantages
✅Industry-Leading Separation Efficiency
- Original variable pitch + variable cross-section spiral trough design creates a stable vortex stratification zone
- Improves -0.037mm fine-grained mineral recovery by 22% and overall comprehensive recovery by 11%
- Increases beneficiation efficiency by 30% without additional energy consumption or floor space
✅ Exceptionally Long Service Life
- Features thickened fiberglass matrix + self-developed nano-ceramic composite wear-resistant lining
- Service life is 2.5 times longer than ordinary fiberglass spiral chutes, reaching over 5 years
- Corrosion and impact resistant, adaptable to various harsh mining environments

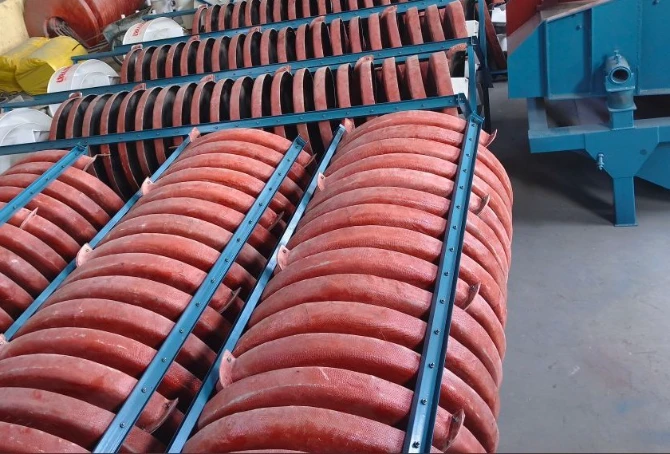

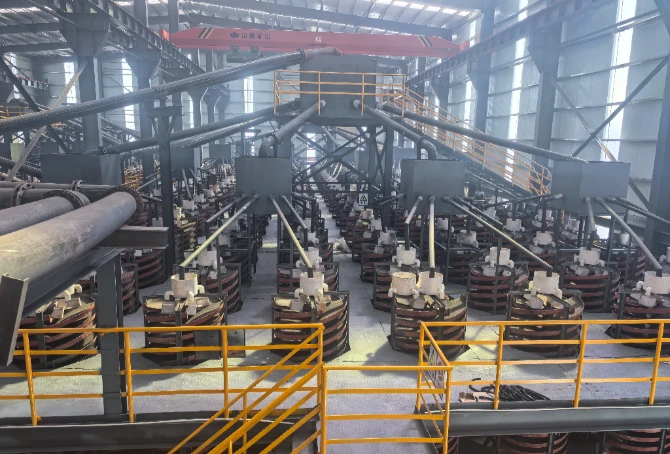

✅ Modular and Flexible Design
- Available in single, double, triple and quadruple start configurations to meet different processing capacity requirements
- Spiral trough inclination and cross-section shape can be customized according to ore properties
- Easy installation and maintenance, can be freely combined into multi-stage separation systems
✅ Intelligent Operation Control
- Optional intelligent feeding and automatic flushing systems
- Real-time monitoring of operating status, automatic parameter adjustment to maintain optimal separation performance
- Reduces manual operation intensity and human error

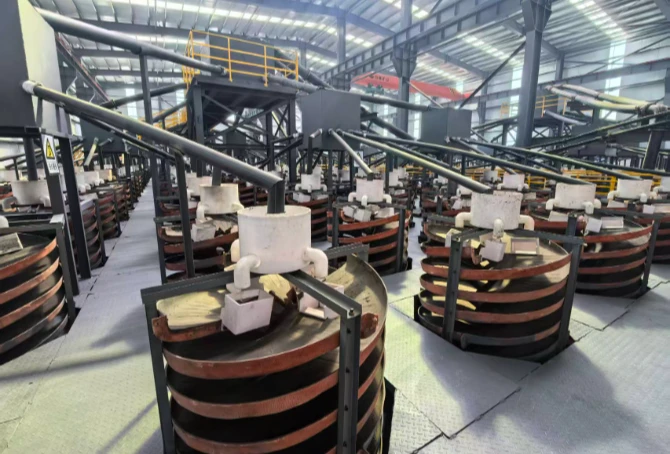

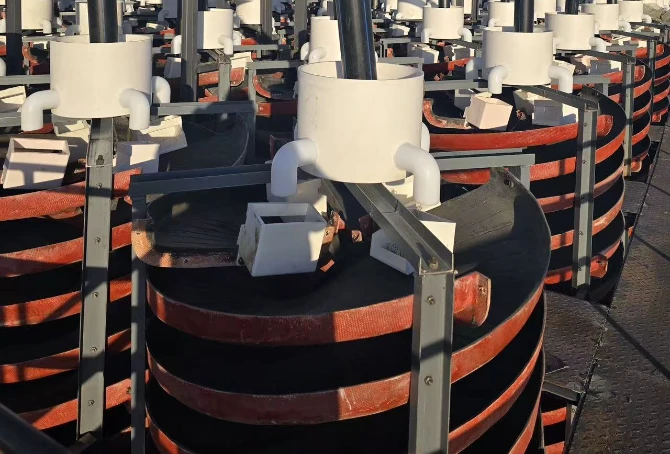

Working Principle
A spiral chute separates mineral particles based on density differences under the combined action of gravity, centrifugal force and water flow friction. Ore pulp is fed from the upper end of the spiral trough and moves in a spiral motion along the trough surface. Denser mineral particles gradually migrate toward the inner edge of the trough, while lighter gangue moves toward the outer edge. They are finally collected separately through interceptors at different positions, achieving efficient mineral separation.
Technical Specifications
| Model | Diameter (mm) | Number of Starts | Capacity per Unit (t/h) | Suitable Particle Size (mm) | Motor Power (kW) | Equipment Height (m) | Equipment Weight (kg) |
| YTO-LL600 | 600 | 1-2 | 0.5-2 | 0.02-0.1 | 0.75 | 3.5 | 350 |
| YTO-LL900 | 900 | 2-3 | 2-6 | 0.02-0.2 | 1.1 | 4.2 | 680 |
| YTO-LL1200 | 1200 | 3-4 | 6-15 | 0.02-0.3 | 1.5 | 5.0 | 1200 |
| YTO-LL1500 | 1500 | 4-6 | 15-30 | 0.03-0.3 | 2.2 | 5.8 | 1850 |
Note: Non-standard models can be customized according to special customer requirements
Application Fields
YTO-LL series spiral chutes are suitable for separating various metallic and non-metallic ores with a density difference greater than 1.6 g/cm³, especially ideal for the following scenarios:
Rougher and cleaner operations, gold recovery rate can reach over 85%
Separation of magnetite, hematite and limonite, iron concentrate grade can reach over 60%
Beach sand ore separation, titanium concentrate grade can reach over 48%
Separation of fine-grained cassiterite and wolframite, recovery rate increased by 15%
Separation of rare metal ores
Coal gangue separation and desulfurization
Typical Process Flows

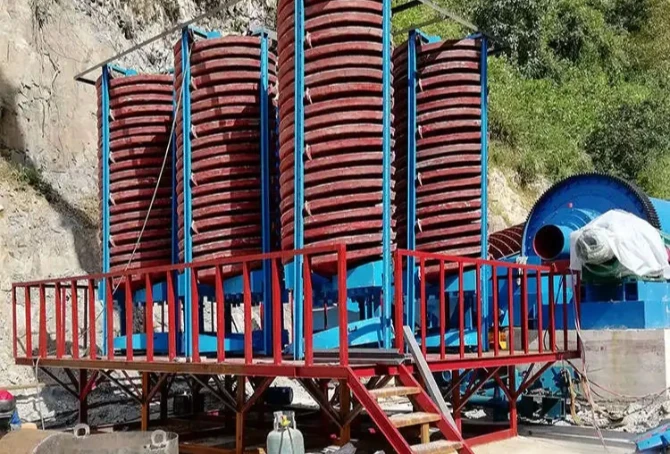

Placer Gold Beneficiation Process
Run-of-Mine Ore → Screening → Desliming Cone → YTO-LL1200 Spiral Chute Rougher → YTO-LL900 Spiral Chute Cleaner → 6-S Shaking Table Final Cleaning → Gold Concentrate

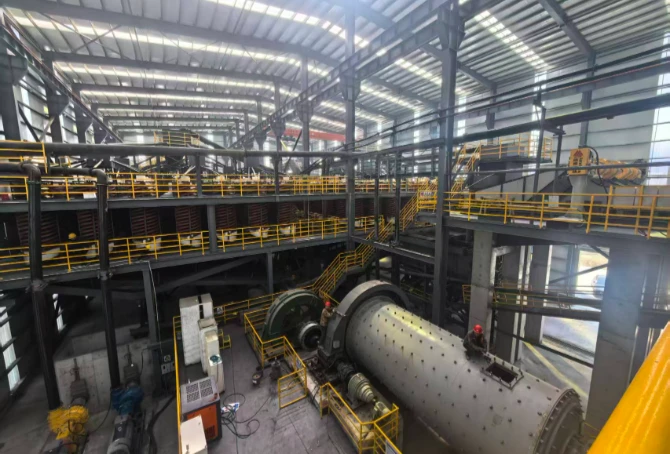

Iron Ore Beneficiation Process
Run-of-Mine Ore → Jaw Crusher → Cone Crusher → Ball Mill → Spiral Classifier → YTO-LL1500 Spiral Chute Rougher → YTO-LL1200 Spiral Chute Scavenger → YTO-LL900 Spiral Chute Cleaner → Magnetic Separation → Iron Concentrate
YTO Service Commitment
Pre-Sales Service
✅ Free mineral processing tests with detailed test reports
✅ One-on-one professional selection guidance and optimal configuration solutions
✅ Free site survey and complete mineral processing plant design
✅ Detailed quotations and return on investment analysis
Sales Service
✅ Manufacturing strictly in accordance with ISO9001 quality standards
✅ Full production progress tracking and timely feedback
✅ Professional packaging to ensure safe equipment transportation
✅ Provision of equipment installation drawings and technical documents
After-Sales Service
✅ Dispatch engineers to guide on-site installation and commissioning
✅ Free training for operators and maintenance personnel
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Lifetime technical support and spare parts supply
✅ 24-hour customer service response

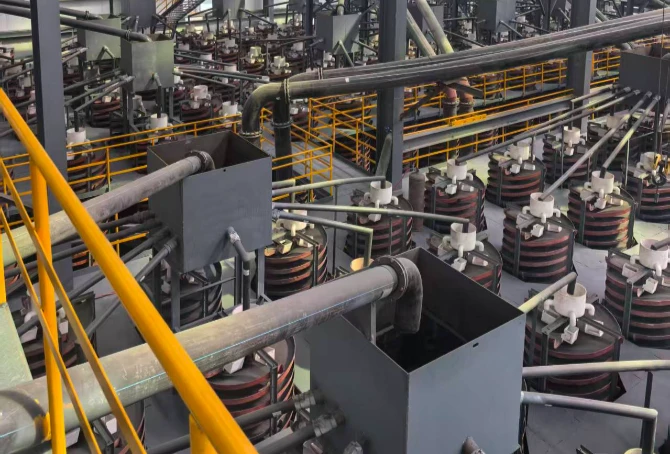

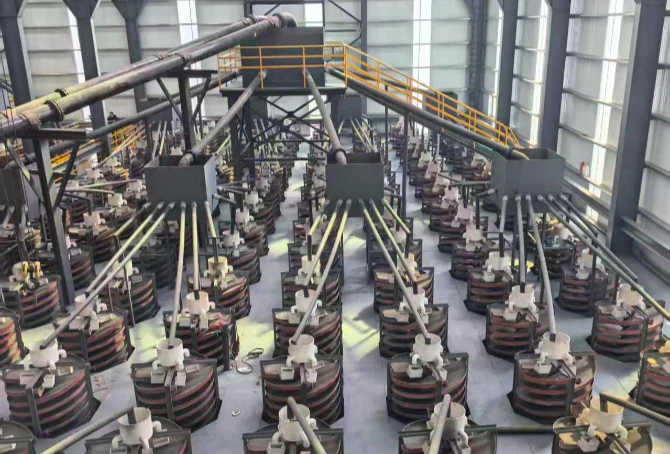

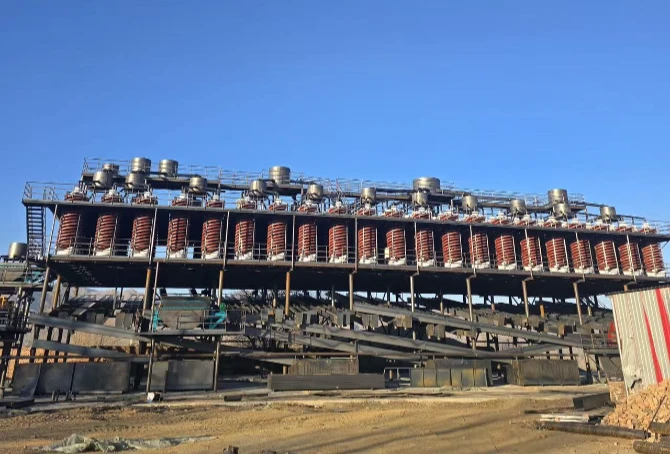

Success Cases

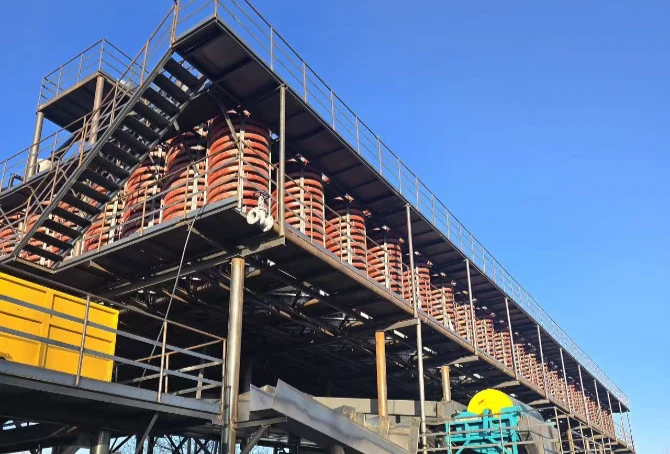

500t/d Iron Ore Project in Ghana, Africa
- Adopted 12 sets of YTO-LL1200-4 start spiral chutes and 6 sets of YTO-LL900-2 start spiral chutes
- Run-of-mine grade 33.8% Fe, final concentrate grade 62-64% Fe
- Comprehensive recovery rate 78-81%, exceeding customer expectations
- Project completed and delivered in 6 months, now operating stably
100t/d Tungsten Ore Project in Ganzhou, Jiangxi
- Adopted 8 sets of YTO-LL900-3 start spiral chutes
- Fine-grained tungsten ore recovery rate increased from 42% to 65%
- Saved 6.8 million RMB in investment by eliminating the need for a new flotation workshop
- Investment payback period less than 10 months
