Introduction

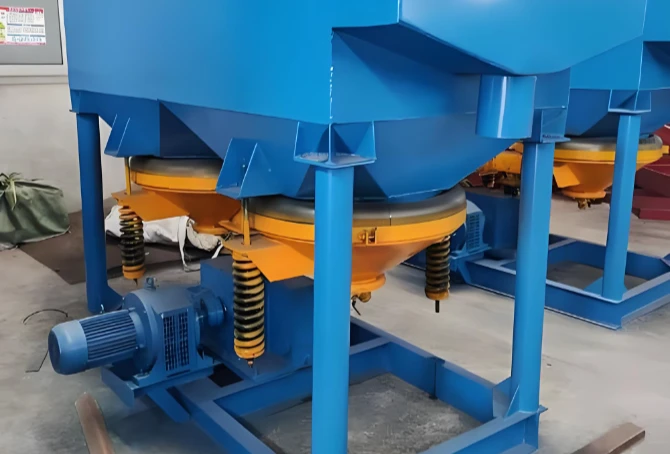

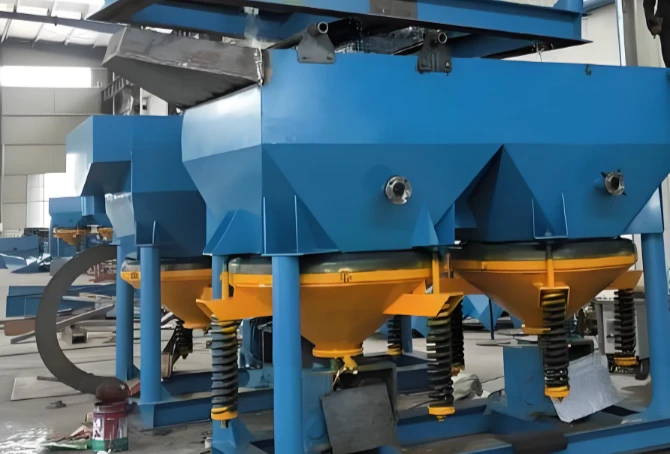

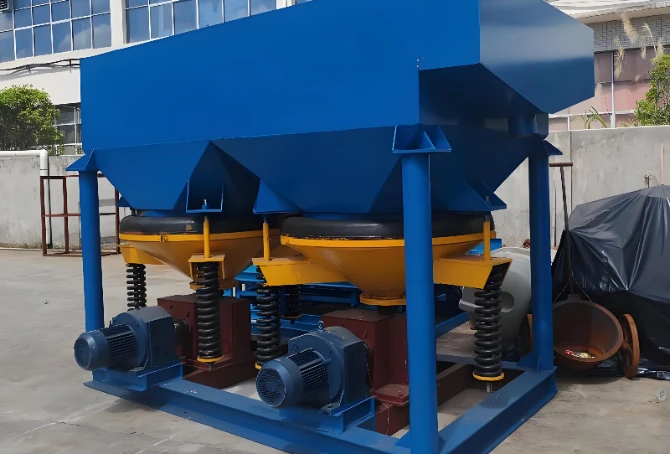

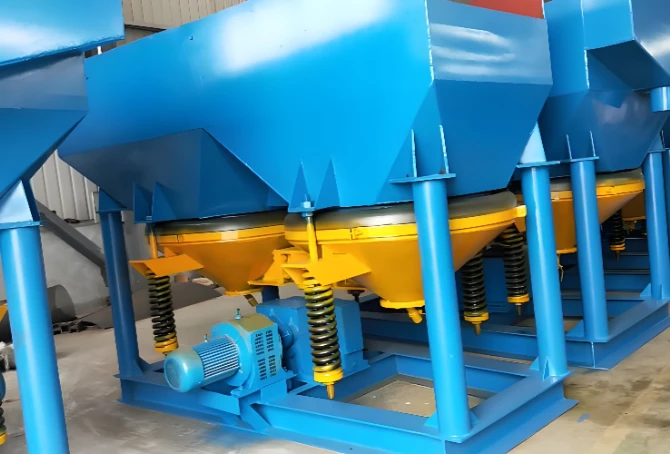

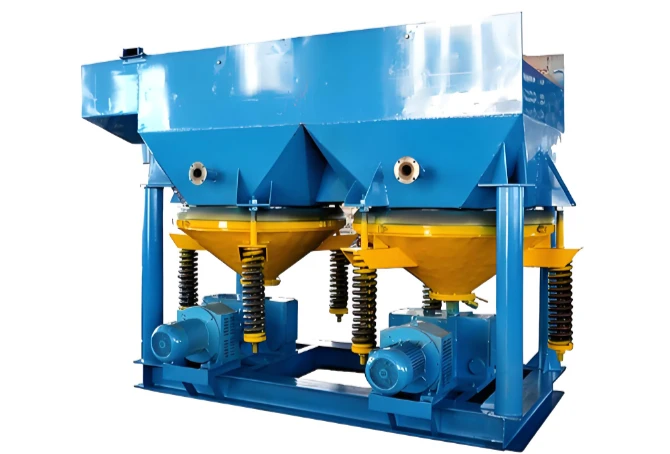

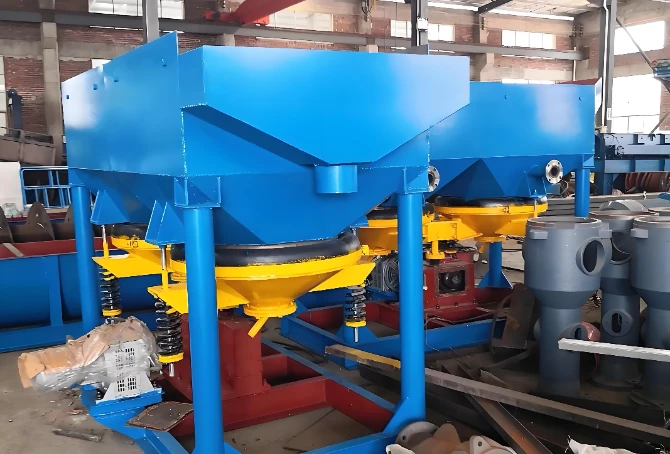

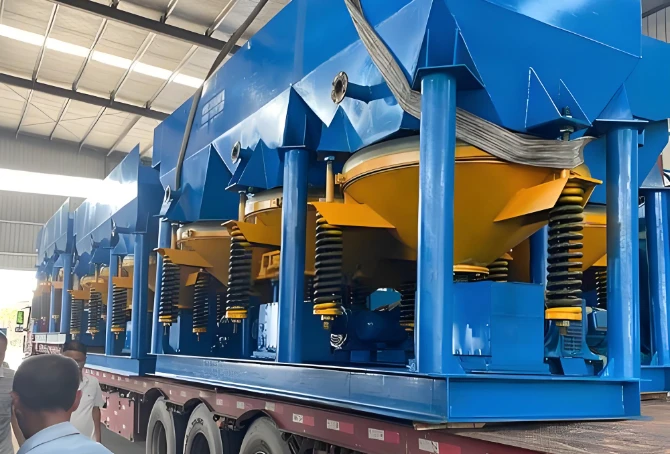

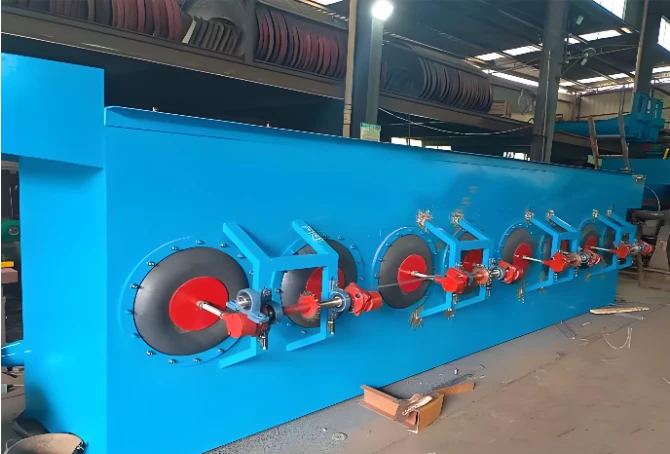

The YTO-JT series diaphragm jig machine is a high-efficiency gravity separation equipment designed for coarse and medium-grained mineral processing. As the most cost-effective equipment for pre-concentration and roughing operations, it effectively recovers valuable minerals at an early stage of the process, significantly reducing the load on subsequent grinding and separation equipment. YTO jig machines are widely used in gold, iron, tin, tungsten, barite and fluorite mines worldwide.
Core Advantages
✅High Capacity & High Recovery
- Specially designed pulsation water flow system creates ideal mineral stratification conditions
- Recovers minerals as coarse as 50mm and as fine as 0.2mm
- Overall recovery rate reaches 85-95% for suitable ores
- Processing capacity up to 30t/h per unit, 3-5 times higher than shaking tables
✅ Wide Application Range
- Suitable for all minerals with density difference >1.5g/cm³
- Ideal for both lump ore and fine ore processing
- Can handle high mud content ores without pre-desliming
- Perfect for placer mining, alluvial mining and hard rock mining operations
✅ Low Investment & Operating Cost
- No grinding required for coarse-grained ores, saving 60% of grinding costs
- Power consumption only 1.5-7.5kW per unit
- No chemical reagents needed, completely environmentally friendly
- Simple structure with few wearing parts, easy maintenance
✅ Advanced Design Features
- Adjustable stroke (5-25mm) and stroke frequency (120-300 times/min)
- Double diaphragm structure for stable pulsation and long service life
- Automatic water level control system
- Modular design for easy transportation and installation
Working Principle
The jig machine separates minerals based on density differences through periodic vertical pulsation of water. The diaphragm generates up-and-down water movement in the jig chamber, causing the mineral bed to loosen and stratify. Denser heavy minerals settle to the bottom layer and are discharged through the concentrate port, while lighter gangue particles remain in the upper layer and are carried away by the cross-flow water to the tailings port.
Technical Specifications
| Model | Chamber Size (mm) | Number of Chambers | Capacity (t/h) | Suitable Particle Size (mm) | Motor Power (kW) | Weight (kg) |
| YTO-JT0.5-1 | 500×600 | 1 | 1-3 | 0.2-10 | 1.5 | 350 |
| YTO-JT1-1 | 1000×1000 | 1 | 3-8 | 0.2-25 | 3.0 | 850 |
| YTO-JT2-2 | 1000×1000 | 2 | 6-15 | 0.2-30 | 4.0 | 1500 |
| YTO-JT3-2 | 1200×1500 | 2 | 10-20 | 0.2-40 | 5.5 | 2200 |
| YTO-JT4-2 | 1500×2000 | 2 | 15-30 | 0.2-50 | 7.5 | 3100 |
Note: Customized jig machines with special chamber configurations are available for specific applications
Application Fields
YTO-JT series jig machines are the preferred choice for coarse-grained mineral separation and are widely used in:
Recovery of coarse gold particles and alluvial gold
Pre-concentration of magnetite and hematite to increase ore grade
Recovery of coarse-grained cassiterite and wolframite
Processing of non-metallic minerals
High-efficiency gravity separation
Coal washing and gangue removal
Recovery of metals from electronic waste and scrap metal
Typical Process Flows
Alluvial Gold Mining Process
Run-of-Mine Ore → Trommel Screen → YTO-JT2-2 Jig Machine Roughing → Spiral Chute Cleaning → Shaking Table Final Concentration → Gold Concentrate
Iron Ore Pre-concentration Process
Run-of-Mine Ore → Jaw Crusher → Cone Crusher → Vibrating Screen → YTO-JT3-2 Jig Machine → Ball Mill → Magnetic Separation → Iron Concentrate
Barite Processing Plant
Run-of-Mine Ore → Crushing → Screening → YTO-JT4-2 Jig Machine → Dewatering → Barite Concentrate
YTO Service Commitment
Pre-Sales Service
✅ Free mineral jigging tests with detailed performance reports
✅ Professional process design and equipment selection guidance
✅ Plant layout design and civil engineering drawings
✅ Detailed investment analysis and payback period calculation
Sales Service
✅ Manufacturing according to ISO9001 quality management standards
✅ Factory inspection and acceptance before delivery
✅ Export-standard packaging for international shipping
✅ Complete set of technical documents and operation manuals
After-Sales Service
✅ Experienced engineers for on-site installation and commissioning
✅ Free training for local operators and maintenance staff
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Global spare parts supply with fast delivery
✅ 24/7 technical support via phone, email and video conference
Success Cases
300t/d Alluvial Gold Project in Tanzania, Africa
- Adopted 8 sets of YTO-JT2-2 jig machines for primary gold recovery
- Recovered 90% of gold particles larger than 0.3mm
- Reduced the load on subsequent equipment by 70%
- Project payback period was only 6 months
500t/d Iron Ore Pre-concentration Project in Hebei, China
- Installed 4 sets of YTO-JT4-2 jig machines
- Increased run-of-mine grade from 22% to 38% before grinding
- Reduced grinding cost by 45% and overall production cost by 30%
- Annual profit increased by 18 million RMB
