Introduction

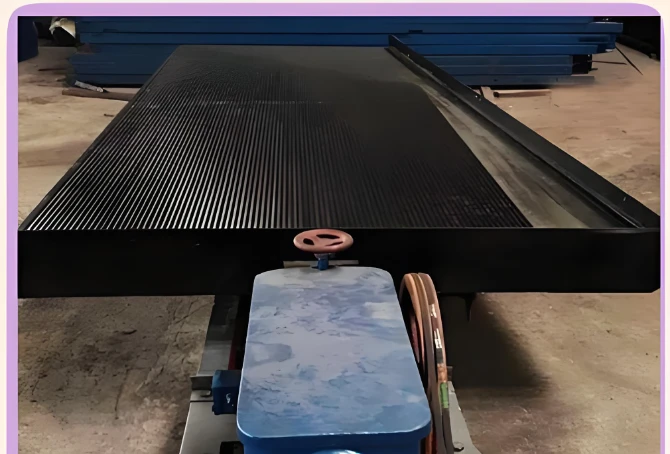

The YTO-6S series shaking table is an upgraded version of the classic gravity separation equipment, optimized based on 15 years of field application experience and thousands of project data. It is the most reliable equipment for fine-grained mineral final concentration, widely recognized for its unparalleled separation accuracy and stable performance. YTO shaking tables are the preferred choice for gold, tin, tungsten, tantalum-niobium and other high-value mineral processing plants worldwide.
Core Advantages
✅ Unmatched Separation Accuracy
- Optimized trapezoidal bed surface with 128 precision-machined riffles
- Achieves 99% separation accuracy for minerals with density difference >1.5g/cm³
- Produces final concentrate grade up to 65% for gold and 70% for tin ore
- Effectively recovers fine-grained minerals down to 0.004mm
✅ Fully Adjustable Operating Parameters
- Stepless adjustment of stroke (6-30mm) and stroke frequency (220-360 times/min)
- Adjustable bed surface inclination (0-10°) and water flow rate
- Can be quickly reconfigured for different ore types and particle sizes
- One machine can handle roughing, cleaning and scavenging operations
✅ Ultra-Durable Construction

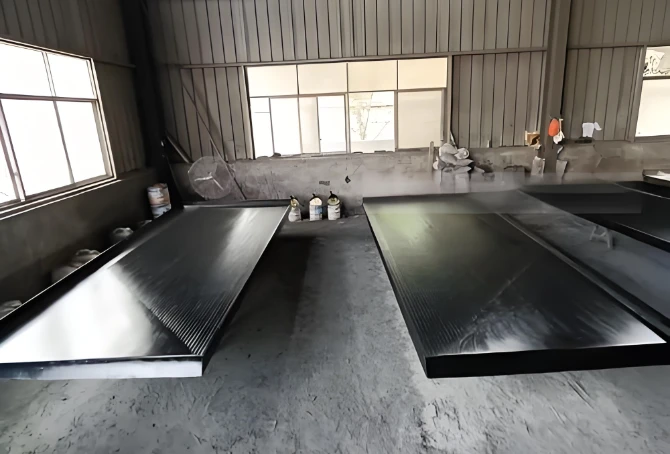

- High-strength fiberglass bed surface with wear-resistant rubber riffles
- Service life of bed surface reaches 8-10 years, 3 times longer than wooden beds
- Heavy-duty cast iron frame with anti-vibration design
- Corrosion-resistant components suitable for acidic and alkaline ore pulp
✅ Low Operating Cost
- Power consumption only 1.1-1.5kW per unit, 70% lower than flotation equipment
- No chemical reagents required, completely environmentally friendly
- Simple structure with few moving parts, minimal maintenance
- Low noise operation (<75dB)
Working Principle

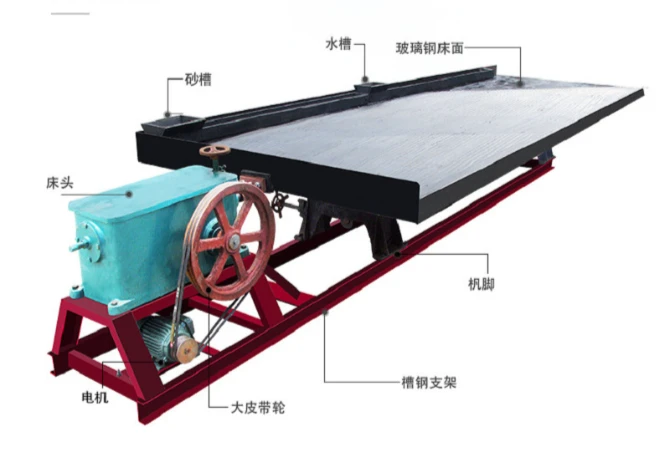

The shaking table separates minerals based on density differences through the combined action of reciprocating mechanical motion and cross-flow water washing. The bed surface makes asymmetric reciprocating motion, causing denser mineral particles to move longitudinally along the riffles to the concentrate end, while lighter gangue particles are washed transversely to the tailings end. This creates a clear separation zone, allowing precise collection of different grade products.
Technical Specifications
| Model | Bed Surface Size (mm) | Capacity (t/h) | Suitable Particle Size (mm) | Motor Power (kW) | Stroke (mm) | Stroke Frequency (times/min) | Weight (kg) |
| YTO-6S-1100 | 1100×4500 | 0.3-1.0 | 0.004-0.3 | 1.1 | 6-25 | 240-360 | 850 |
| YTO-6S-1200 | 1200×5000 | 0.5-1.5 | 0.004-0.5 | 1.5 | 8-30 | 220-340 | 1100 |
| YTO-6S-L | 1500×5500 | 1.0-2.5 | 0.01-0.6 | 2.2 | 10-30 | 200-320 | 1450 |
| YTO-6S-X | 1000×4000 | 0.1-0.5 | 0.004-0.15 | 0.75 | 6-20 | 260-380 | 650 |
Note: Customized bed surfaces with special riffle designs are available for specific ore types
Application Fields
YTO-6S shaking tables are ideal for high-value mineral concentration and are widely used in the following scenarios:
Final concentration of placer gold and rock gold, recovery rate up to 90%
Processing of cassiterite and wolframite, producing high-grade concentrate
Separation of rare metal ores with high economic value
Beach sand mineral separation and purification
High-efficiency gravity separation
Fine coal desulfurization and gangue removal
Recovery of precious metals from circuit boards
Typical Process Flows
High-Grade Gold Ore Concentration Process
Spiral Chute Concentrate → YTO-6S Shaking Table Roughing → YTO-6S Shaking Table Cleaning → Gold Concentrate (purity >90%)
Tungsten Ore Processing Plant
Ball Mill → Spiral Classifier → Spiral Chute Rougher → YTO-6S Shaking Table Cleaning → Tungsten Concentrate (grade >65%)
Combined Gravity Separation Process
Run-of-Mine Ore → Crushing → Grinding → Jig Machine → Spiral Chute → YTO-6S Shaking Table → Final Concentrate
YTO Service Commitment
Pre-Sales Service
✅ Free mineral processing tests with detailed separation effect reports
✅ Professional process design and equipment configuration recommendations
✅ On-site investigation and plant layout design
✅ Investment budget and return on investment analysis
Sales Service
✅ Strict quality control according to ISO9001 standards
✅ Real-time production progress updates with photos and videos

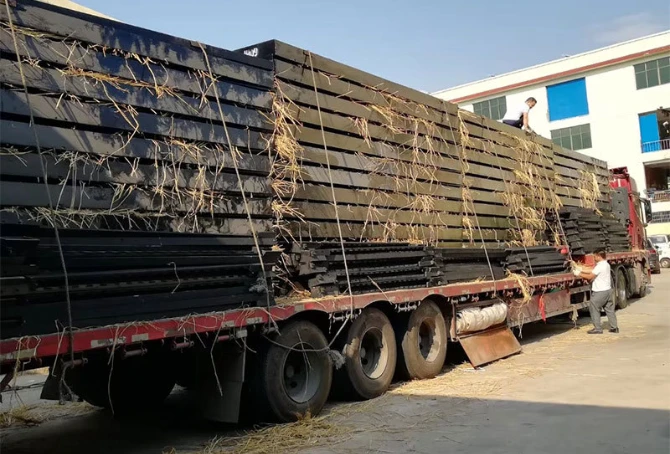

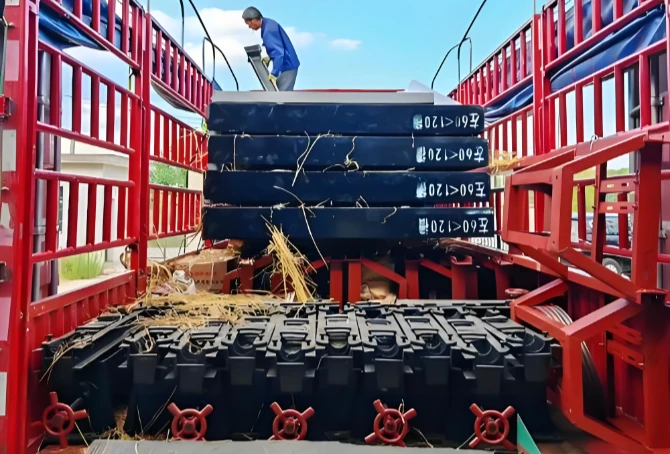

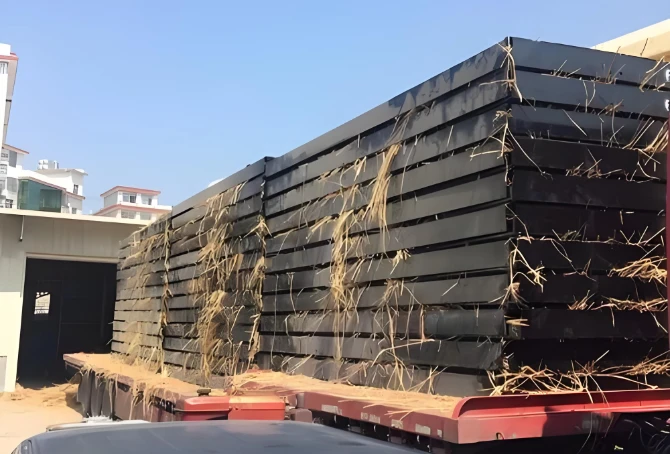

✅ Export-standard packaging for long-distance sea transportation
✅ Complete technical documentation and operation manuals
After-Sales Service
✅ Experienced engineers dispatched for on-site installation and commissioning
✅ Comprehensive training for operators and maintenance technicians
✅ 1-year equipment warranty, 6-month warranty for wearing parts
✅ Global spare parts supply with 7-day delivery
✅ 24/7 technical support via phone, email and video call

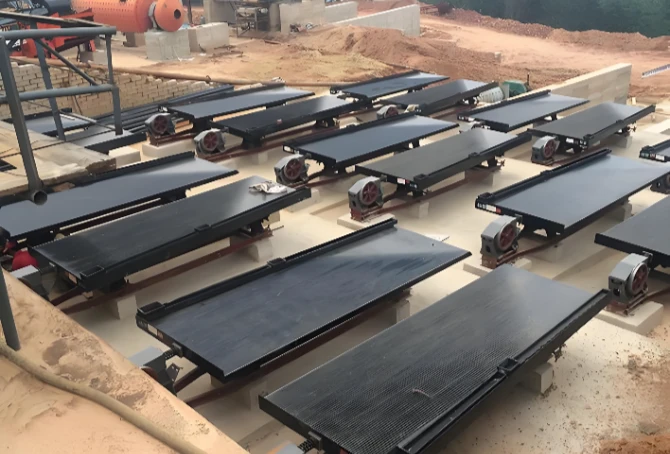

Success Cases
100t/d Tungsten Ore Project in Ganzhou, Jiangxi
- Adopted 12 sets of YTO-6S-1200 shaking tables for final concentration
- Tungsten concentrate grade increased from 35% to 68%
- Overall recovery rate improved by 18% compared to old equipment
- Annual profit increased by 12 million RMB
200t/d Placer Gold Project in Mali, Africa
- Equipped with 24 sets of YTO-6S-1100 shaking tables
- Gold recovery rate reached 92%, 15% higher than local equipment
- Stable operation for 5 years with minimal maintenance
- Customer expanded production capacity by 50% in 2025
